Cylinder circumferential joints planishing machine

Hefei Trancar Industries Steel tank cylinder circumferential welded joints planishing machine with CE certificate.

Quantity: - +

Product Description

Hefei Trancar Industries cylinder circumferential joints planishing machine with CE certificate

Automatic planishing machine automatic planishing machine is designed for steel tank shell,cylinder surface welded seams welding seam treatments,such as planishing / flatten / crush and smoothing treatment after welding,So that to get better surface  sanitary cylinder tanks.

There are longitudinal and circumferential welded joints on steel tank surface,so we have longitudinal welding seam planishing machine and  circumferential joints planishing machine for option.Both two kinds welds seam planisher could be design & produced by Trancar Industries based on clients’ demands.

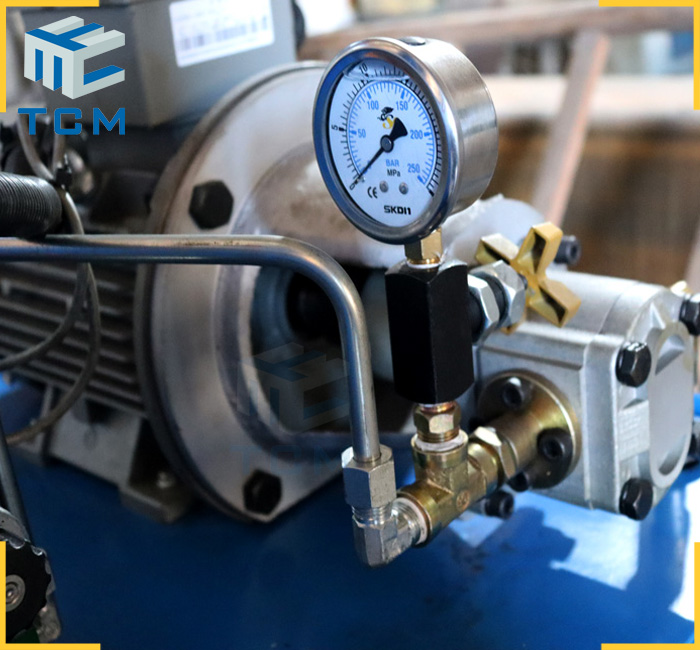

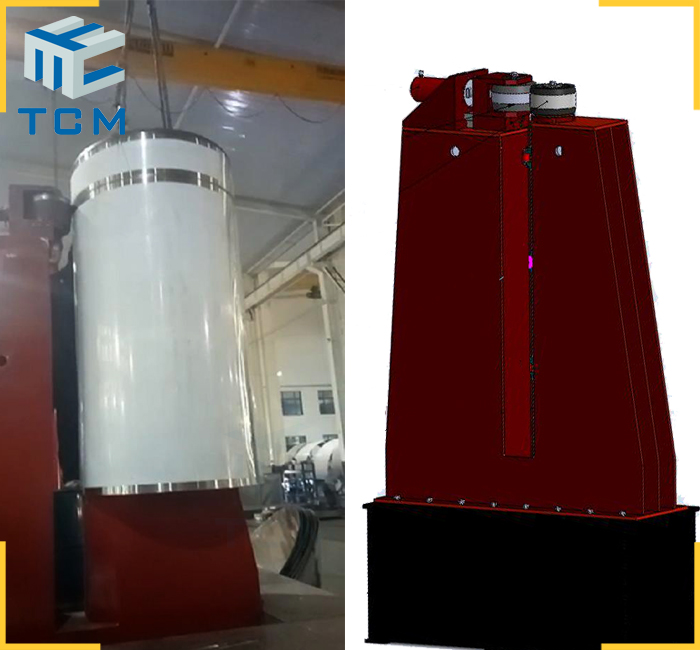

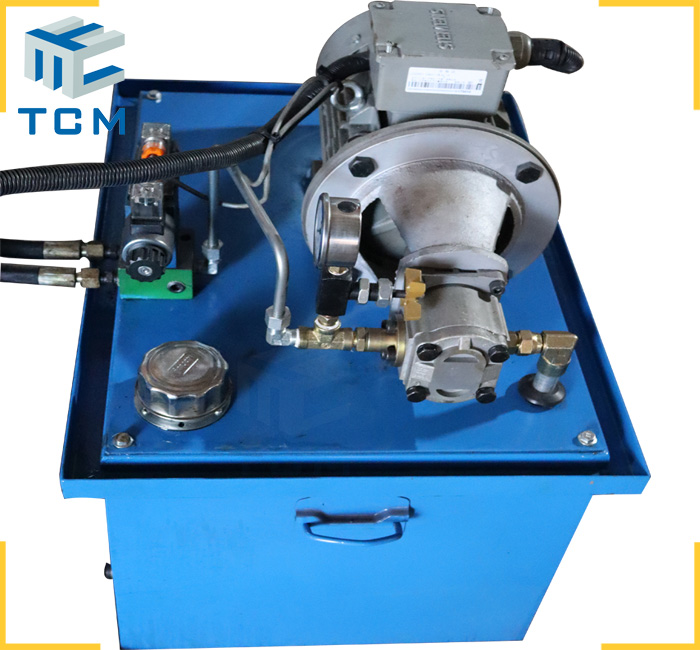

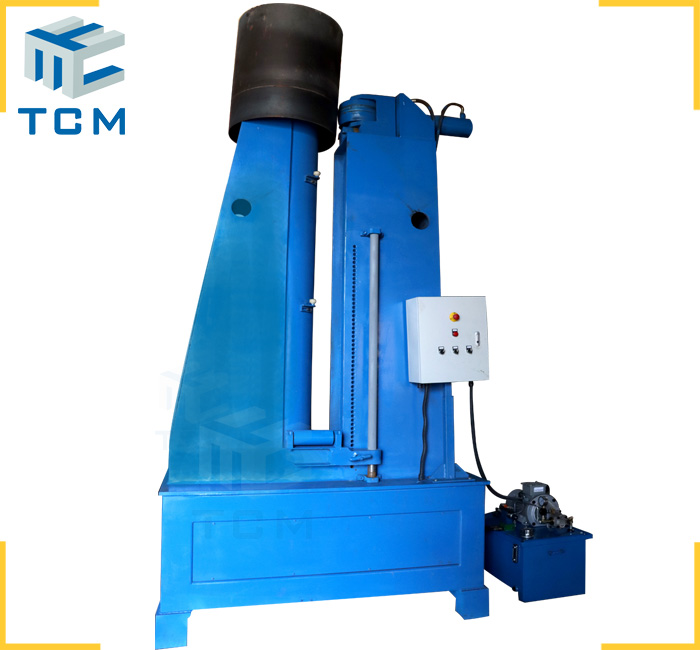

TCM-CP planishing equipment is an cylinder circumferential joints planishing machine.The machine is mainly composed of fuselage,rolling wheel,rolling guide rail,top tightening cylinder,hydraulic station,main transmission mechanism, lubrication and electrical control system.It’s mainly for planishing steel tank circular welded joints (seam),crushing tank shell welded joints and flatten vessel circular welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage, water filtration,etc.#circularweldedjointplanishing #cylinderweldingseamplanishingmachine #steeltankweldedseamsmoothing machine #weldingseamplanisher

For more TIG MIG welds seam grinding & planishing solutions please contact us via Email:contact@trancarindustries.com

TCM-CF Steel cylinder circumferential joints planishing machine parameter

Normal configuration(customer design acceptable)

Steel metal tank size

Tank shell diameter

800-5000 mm

Tank shell Max.Weight

1 Ton / 2 Ton / 5 Ton /10 Ton

Planishing Speed

1000 mm/minute

Welded Seam Width

50-70mm / Based on demands

Planishing machine size

Machine Dimension


Smoothing Roller Material

Steel Gr12 case hardening

Operating pressure

12 Mpa

Input total Power


6 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight




Grey/Green/Blue/Red/Yellow Custom design

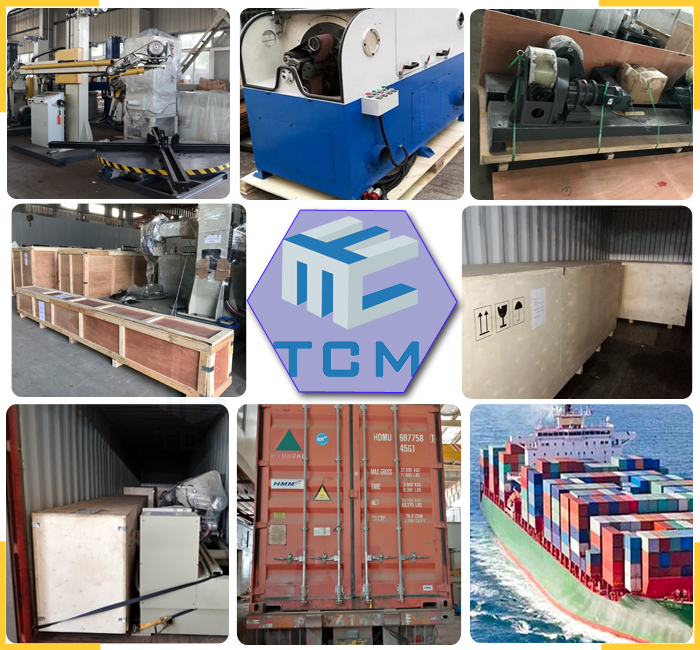

Steel cylinder circumferential joints planishing machine package & delivery:

Standard export package will be used for planishing machine dispatch.

polishing machine package1.jpg
