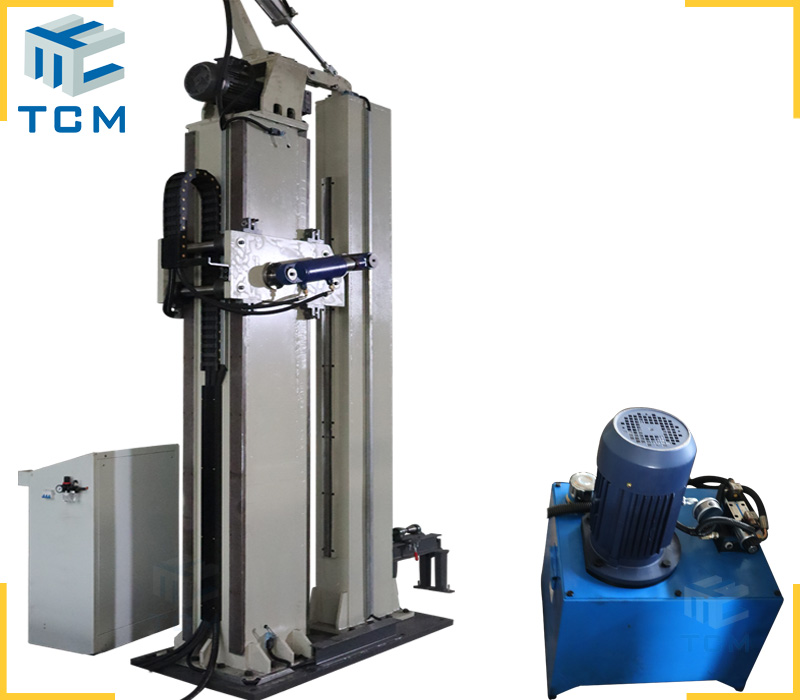

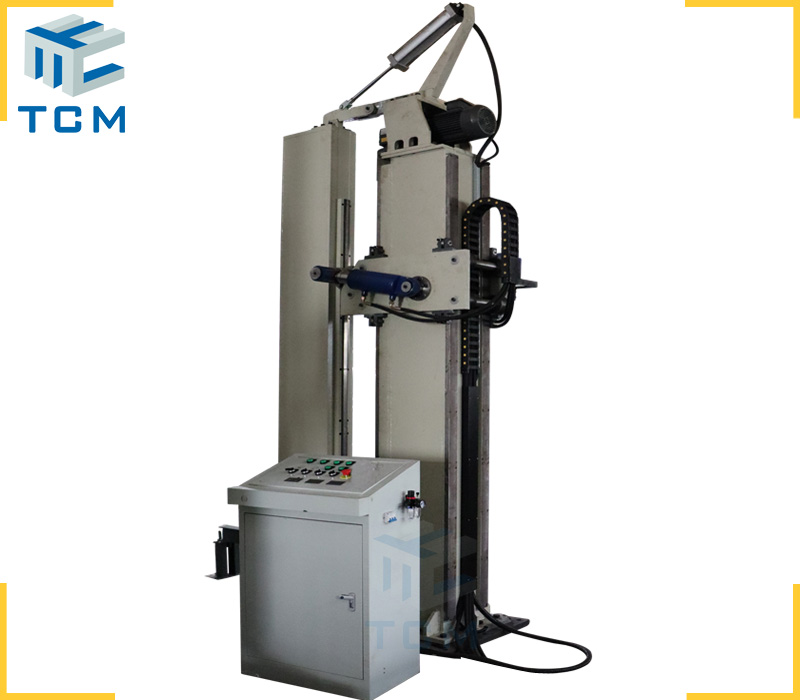

Steel tank longitudinal welding seams planishng machine long welding seam planishing
Steel tank longitudinal welding seams planishng machine long welding seam planishing
TCM-LF automatic welding seam planishing machine is designed for steel tank shell welded seams surface treatment before polishing such as flatten & crush & planishing treatment after welding,and to make steel tank with better surface thus to get higher quality Ss tanks.It’s mainly for crushing steel tank longitudinal welded seams & lines,crushing tank vertical welded joints and planishing vessel longitudinal welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage, water filtration,etc.
Steel tank longitudinal welding seams planishng machine parameter:
Normal configuration(customer design acceptable) | ||
Steel metal tank size | Tank shell diameter | ≧ 500 mm |
Tank / Welded Seam Length | 1800 mm /Custom design | |
Tank shell Max.Weight | 1 Ton / 2 Ton / 5 Ton /10 Ton | |
Flatten Roller Move Speed | ≧2500 mm/minute | |
Welded Seam Width | 50-70mm / Based on demands | |
Flatten machine size | Machine Dimension | 2000*900*3200mm |
Operating pressure | 12 Mpa | |
Input total Power | / | 5 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 2200kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
