Carbon steel pressure vessel tank welding seam grinding polishing machine

Searching the Tank Welding Seam Grinding Polishing Machine bestsellers of China? We provide various kinds of Polishing Machine and sales on www.tcmgrinding.com.

Quantity: - +

Product Description

Carbon steel pressure vessel tank welding seam grinding polishing machine


Trancar Industries welding seam grinding polishing machine is custom design based on client’s demands.The turning roller which for rotating tank shell is also custom design one which is adjustable by motor.At the same time this machine mount with camera which make the weld seam polishing process visualization.For more please contact us,we are polishing machine manufacturer custom design and engineer oversea service are available.This welding seam polishing machine is suitable for carbon steel tank,stainless steel pressure vessel surface welded joints welding line treatment-grinding & polishing,This welding seam polishing machine also could polish steel tanks internal and external surface, pressure vessel,industrial container and the circumferential welding seams surface.

This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.

It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yogurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.

Carbon Steel Pressure Vessel Weld Seam Polishing Machine parameter:

Normal configuration(customer design acceptable)

Vessel size

Outside diameter

400~5000mm / 7000 mm

Inside diameter

400~5000mm / 7000 mm

Length

<=5000mm / 8000 mm

Tank Roller Max.Loading capacity

1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T.

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

Polishing working speed

6~12 m2/h

Total Dimension

Machine Dimension

3500*1600*3080mm

Column Dimension

300x400x8 mm

Beam Dimension

150x200x6 mm

Input total Power

/

12 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

3000kg

Color

Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Material

Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)

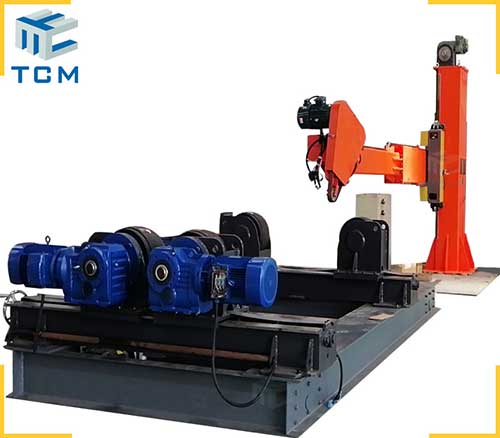

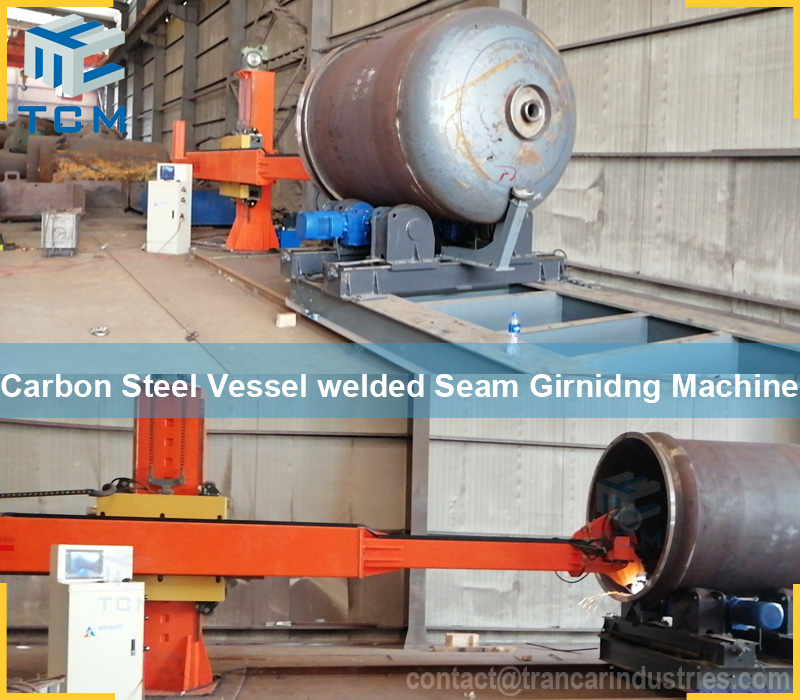

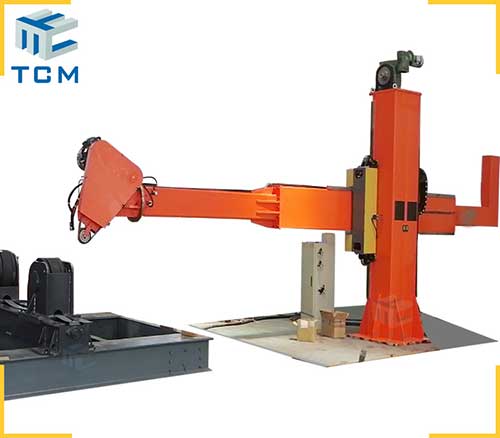

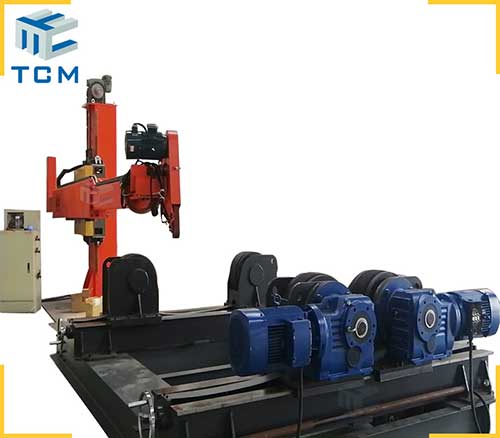

Automatic seam polishing machine photography:

carbon steel pressure vessel welding seam polishing machine (5).jpg
