We own advanced Weld Joints Planishing Machine technology to make sure products quality, and we are the best Circumferential Seam Planishing Machine company in China.
TCM-CP automatic planishing machine is designed for steel tank shell welded seams surface planishing & flatten & crush and smoothing treatment after welding,So that to make steel tank vessel with better whole surface.

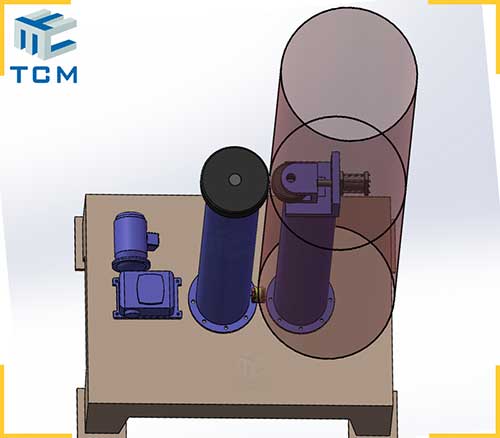

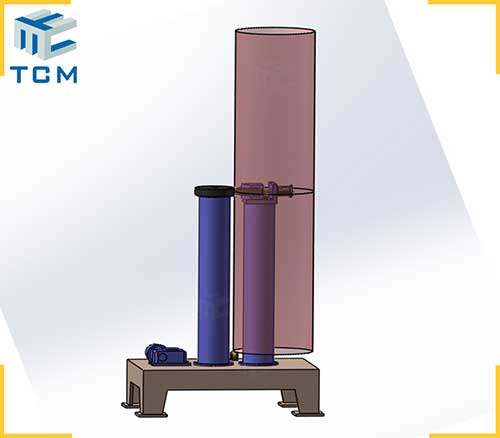

The machine is mainly composed of fuselage,rolling wheel,rolling guide rail,top tightening cylinder,hydraulic station,main transmission mechanism, lubrication and electrical control system.It’s mainly for planishing steel tank circular welded joints (seam),crushing tank shell welded joints and flatten vessel circular welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage, water filtration,etc.

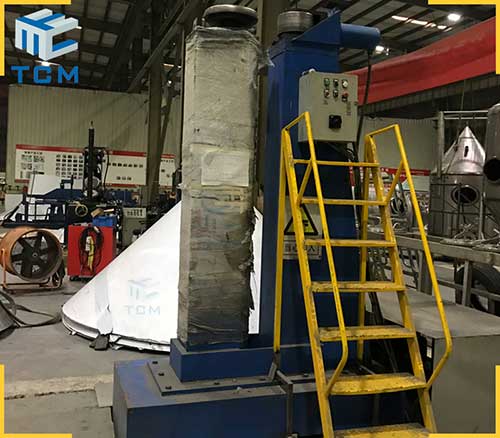

TCM-CP Steel tank circular welded seam planishing smoothing machine
Normal configuration(customer design acceptable) | ||
Steel metal tank size | Tank shell diameter | 900-6000 mm |
Tank shell Max.Weight | 1 Ton / 2 Ton / 5 Ton /10 Ton | |
Planishing Speed | ≦1000 mm/minute | |
Welded Seam Width | 50-70mm / Based on demands | |
Planishing machine size | Machine Dimension | 2000*900*3500mm |
Smoothing Roller Material | Steel Gr12 case hardening | |
Operating pressure | 12 Mpa | |
Input total Power | / | 6 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 3000kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
