Automatic weld seam finishing machine for ss tank longitudinal welding seam removal and welding line polishing

Automatic weld seam finishing machine for ss tank longitudinal welding seam removal and welding line polishing

Quantity: - +

Product Description

Automatic weld seam finishing machine for steel tank shell longitudinal welding seam removal & welding line polishing

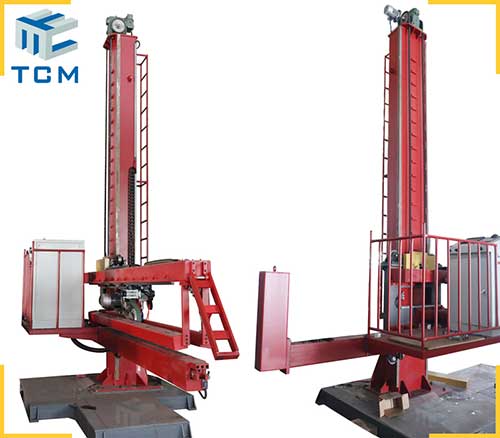

    Trancar Industries company TCM-TW column and boom structure automatic weld seam finishing machine is new custom design weld seam surface grinding machine for steel tank shell longitudinal welding seam removal and welding line polishing.This model is suitable for all kinds of stainless steel tanks' welded seams joints' surface grindingand cylinder shell vessel body welding lines grinding.It's mainly for longitudinal welded seams and joints' surface treatment.This machine is widely used in medical area,chemical,environmental purification,food,beverage & water filter,etc.

    It could polish all kinds of steel metal cylinder tanks surface welding lines,such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.

    Custom design welded seam finishing solutions are available based on your demands for your steel tank vertical or horizontal welded seam surface grinding and polishing accordingly.


Automatic steel tank longitudinal welded seam finishing machine parameter:

Normal configuration(customer design acceptable)

Tank Longitudinal Welded Seam Size

Length

 ≦ 3000mm

Width

≦ 60 mm / 75 mm

Tank Roller Max.Loading capacity

1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T.

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

Polishing working speed

6~12 m2/h

Total Dimension

Machine Dimension

4500*1600*5080mm

Input total Power

/

18 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

4500 kg

Color

Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Material

Abrasive sanding belts.

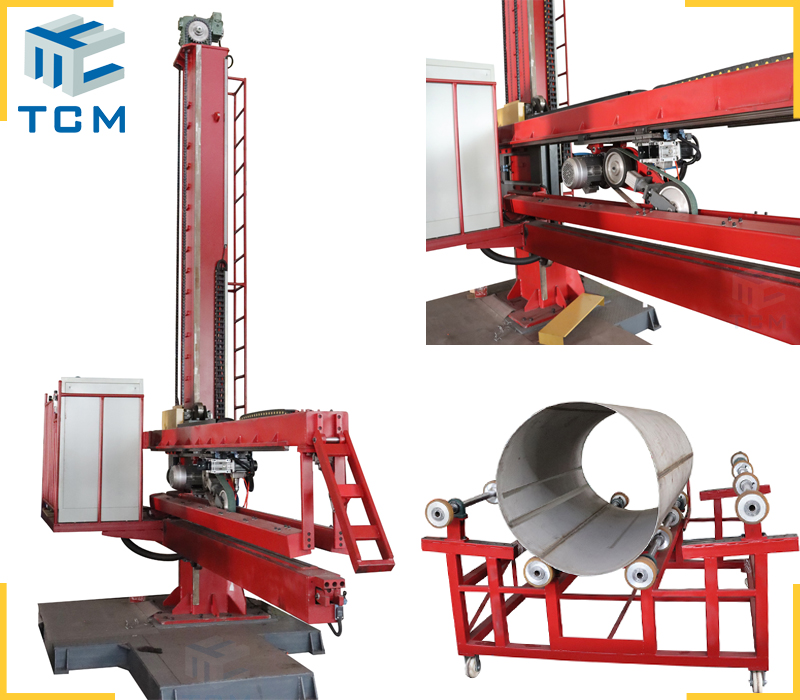

longitudinal weld seam finishing machine (4).jpg
