Steel Metal Filter Housing Surface Automatic Polishing Machine

Searching the Surface Automatic Polishing Machine bestsellers of China? We provide various kinds of Polishing Machine and sales on www.tcmgrinding.com.

Quantity: - +

Product Description

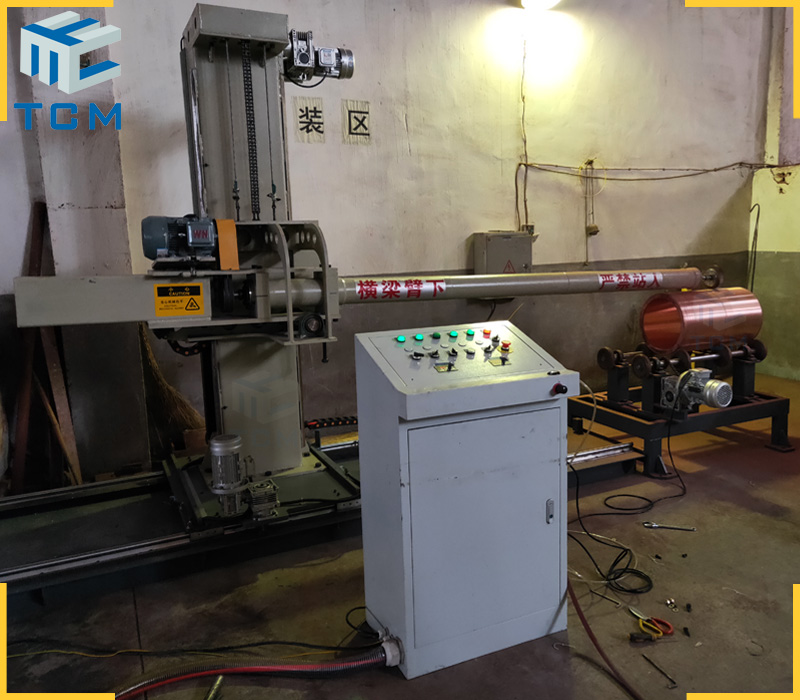

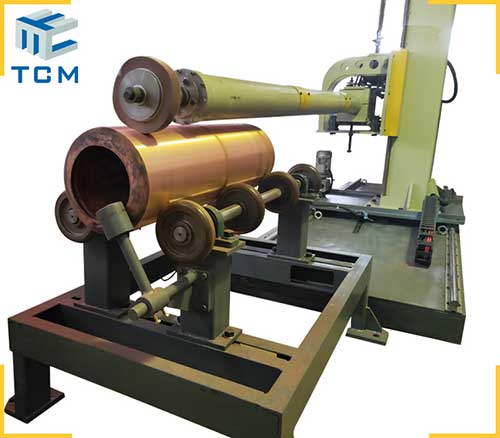

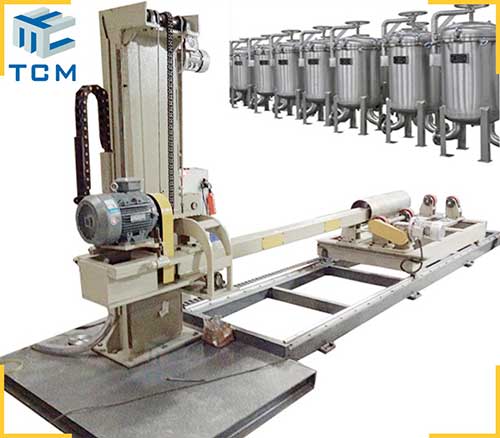

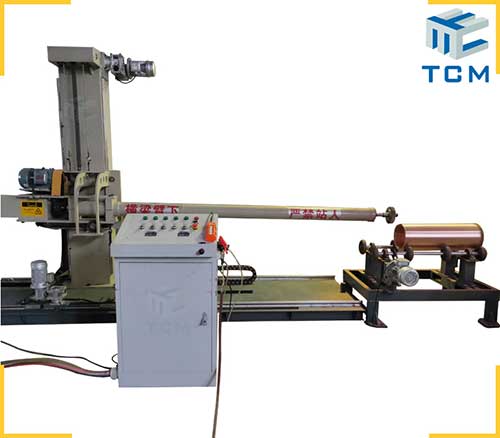

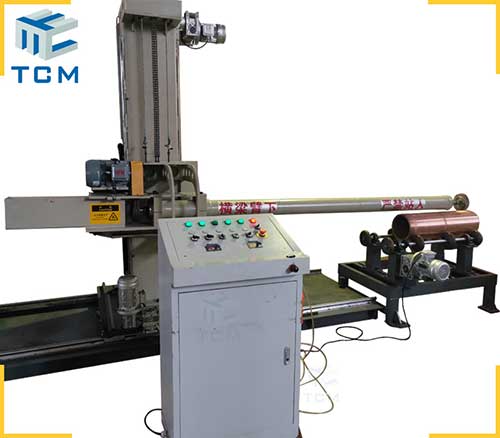

Steel metal filter housing surface automatic polishing machine

Trancar Industries filter housing column and boom manipulator surface automatic polishing machine,This model is suitable for small diameter steel pipe,steel filter housing inner and outer surface grinding and polishing,It’s also could polish steel tanks internal and external surface,and pressure vessel,industrial container and the circumferential welding seams surface polishing.This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yogurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.

Steel Filter Housing Automatic Polishing Machine parameter:

Normal configuration(customer design acceptable)

Steel tank size

Outside diameter

400~5000mm / 7000 mm

Inside diameter

400~5000mm / 7000 mm


<=5000mm / 8000 mm

Tank Roller Max.Loading capacity

1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T.

Polishing Precision

Surface roughness(Ra)


Production Efficiency

Polishing working speed

6~12 m2/h

Total Dimension

Machine Dimension


Column Dimension

300x400x8 mm

Beam Dimension

150x200x6 mm

Input total Power


12 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight




Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Material

Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)

steel filter tank polishing machine (6).jpg
