Wire polishing machine for carbon steel alloy aluminum wire surface descaling brighten diameter reduce

Hefei Trancar provide custom design high precision high speed wire polishing machine for carbon steel alloy aluminum wire surface descaling brighten diameter reducing.

Quantity: - +

Product Description

TCM wire polishing machine for carbon steel alloy aluminum wire surface descaling brighten diameter reduce

 #carbonsteelwiredescaling #steelwirebrightenmachine #highcarbonsteelwiregrinding #trancarpolishing #wirerodgrindingmachine

TCM-WR abrasive belts steel wire polishing machine use a mechanical method to process wire rod surface instead of traditional way acid pickling.steel wire drawing machine #wirelinedrawing #weldingwiredescaling #steelwirepickling.


This belt polishing machine cleans the slight pits,and scratches on the surface of the wire rod.Each set of active rollers and a tension roller supported by the turntable drives the high-speed rotating abrasive belt.For polishing (roller made of aluminum alloy),the rotating speed of the turntable matches the speed of the take-up machine.

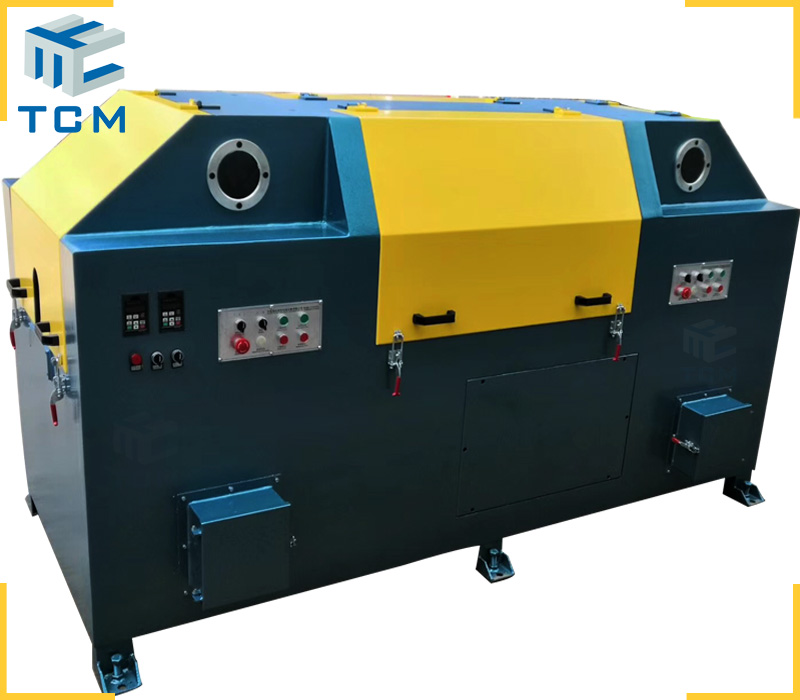

TCM-WR polishing machine Introdution:

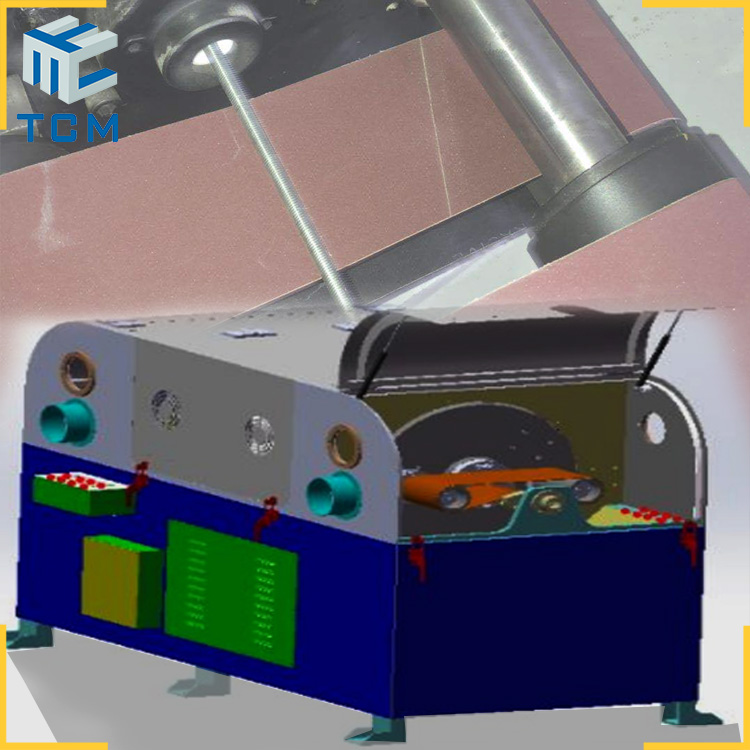

This machine frame uses the structural part,long square box structure.This equipment is composed of spindle, rotary disc, power drive part, straightener,protective cover,and vacuum cleaner.The working principle:Belt is mounted on the turntable with revolution and rotation,belt installed in the right place always close to the wire rod surface,by adjusting the eccentric shaft to complete belt tensioning-releasing,loading/unloading the belt and threading the wire rod,the adjustment of the eccentric shaft lever spring can change the tension of the sand belt.The main drive uses 2 set 7.5kw frequency conversion motor to run through a triangular belt drive spindle.The turntable is connected with the main shaft with a bolt,which is convenient for maintenance and disassembly.The machine is automatically controlled by the SIEMENS PLC program between the machine and the host,and the machine can also switch to separate control.The surface of the steel wire to remove rust through the belt machine completely meets the requirement of the coating. The abrasive belt uses imported zirconium corundum belt or ceramic belt.#steelwiregrindingequipment weldingwirepolishingmachine

Carbon steel alloy aluminum wire surface brushing descaling machine  (3).jpg Carbon steel alloy aluminum wire surface brushing descaling machine  (4).jpg

Steel Wire surface descaling machine parameter:

Normal configuration(customer design acceptable)

Wire Rod Diameter

1-5mm / 5-8mm / 8-16mm / 16-25mm

Machine Dimension

(L×W×H)  2650×1050×1300mm

Abrasive Belts Size

1600*500 mm / 1350*300mm / 1250*300mm etc

Production Efficiency

Polishing working speed

120-200 m/h

Input total Power

35 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

2100kg

Color

Grey/Green/Blue/Red/Yellow Custom design

For option

Dust Collection system is available during polishing.



Contact for more steel wire rod surface descaling brighten diameter reducing solution:

www.tcmgrinding.com

contact@trancarindustries.com

sales06@trancarindustries.com

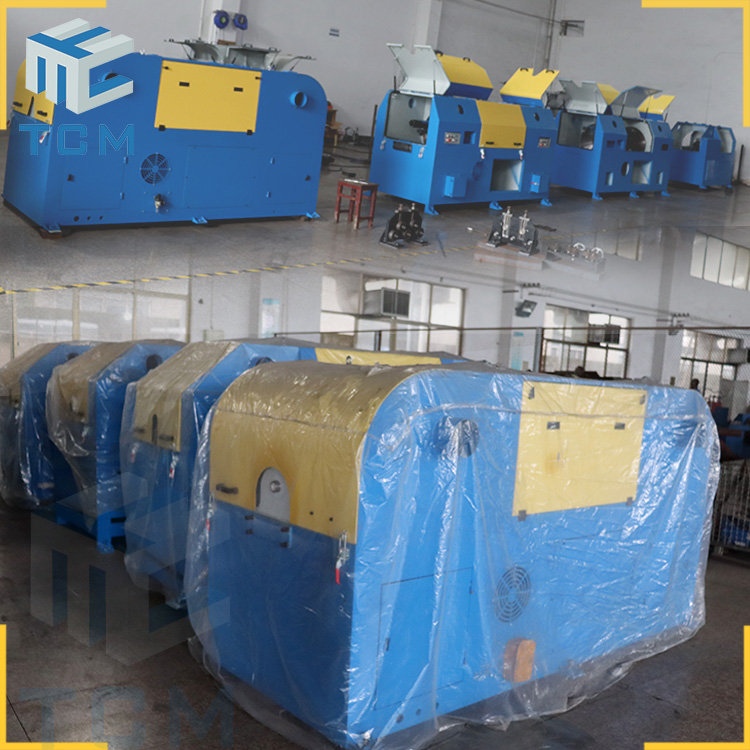

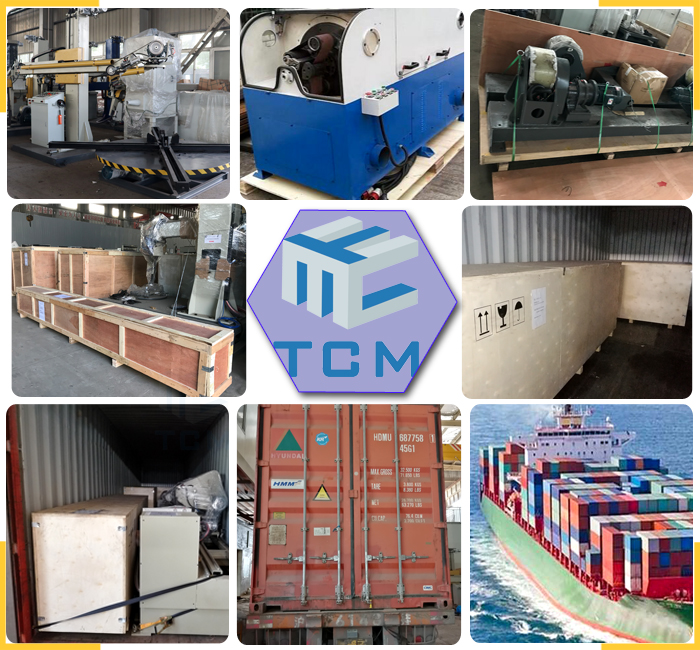

TCM polishing machine grinding equipments' package & delivery:

polishing machine package1.jpg
