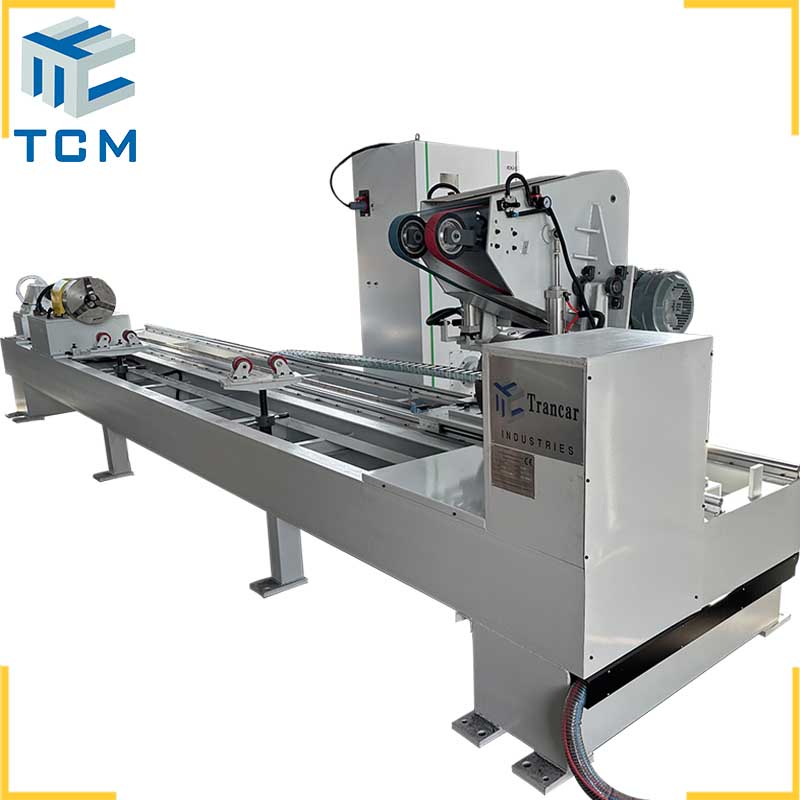

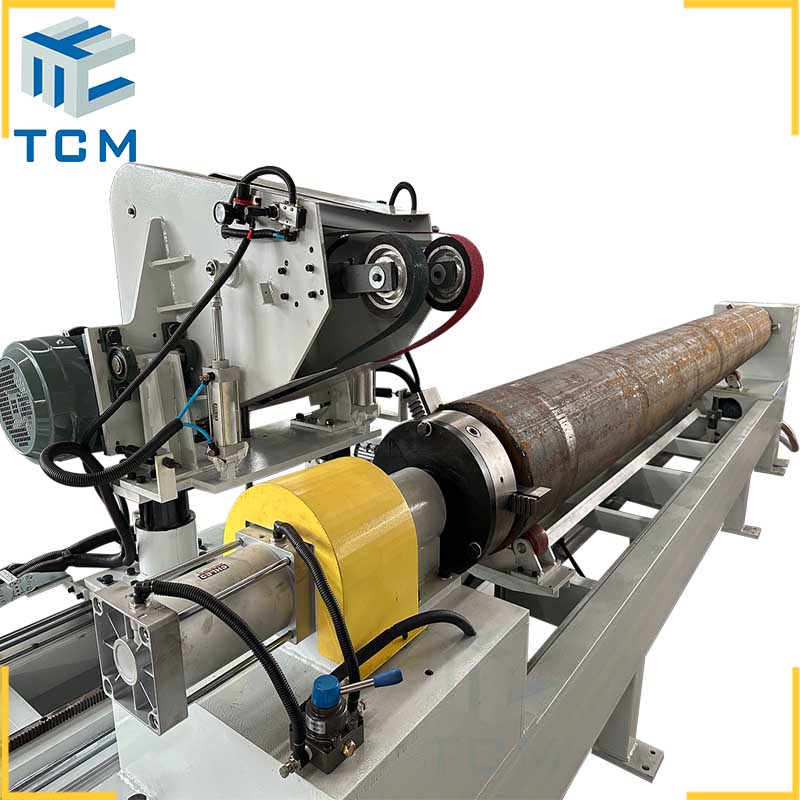

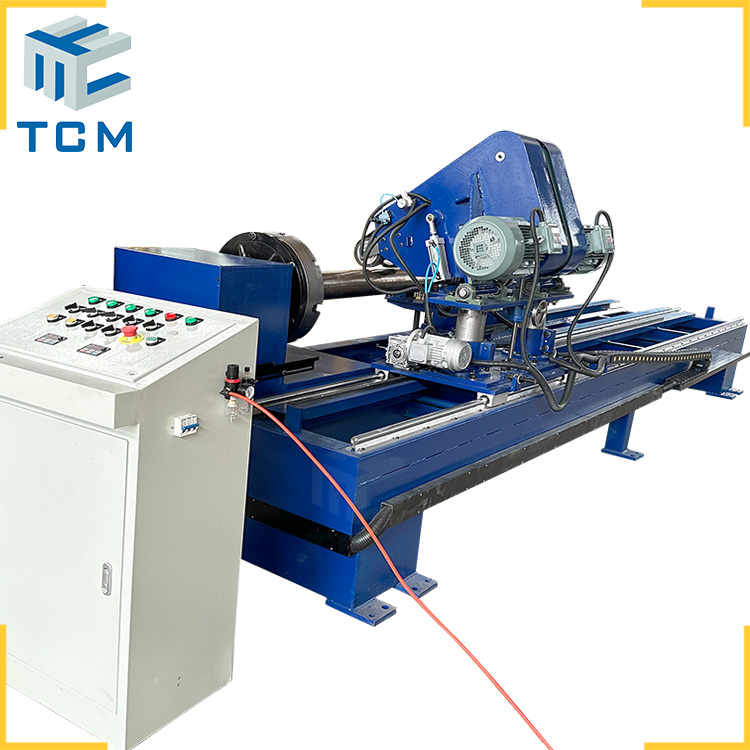

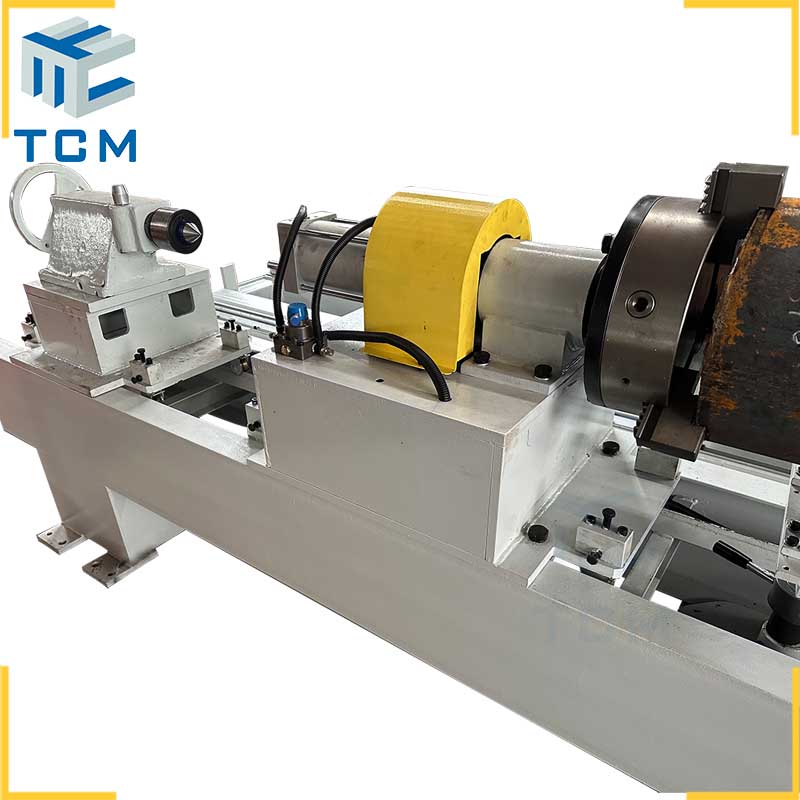

Trancar Industries TCM-WP series Steel shaft automatic grinding polishing machine
Trancar Industries TCM-WP series Steel shaft grinding polishing machine
Hefei Trancar Industries Model TCM-WP automatic grinding machine is design for steel round pipe rod and shaft surface polishing,beside workable for hydraulic piston,it’s also could for cylindrical steel products surface treatments,such as it could polish steel tube pipe,Round Solid bar,hydraulic cylinder exterior surface in automatic way.Trancar hydraulic shaft polishing machine equip with double variable frequency grinding motors both of them power is 5.5 KW.Both grinding wheels and abrasive sanding belts are available for this type tube pipe polishing machine.It’s widely used in the fields of petrochemical industry/Organic fuel,Organic fuel
production,Pharmaceutical/CIP Plant,Chemical & Cosmetic industry etc.
Steel shaft automatic polishing grinding machine parameter:
Normal configuration(customer design acceptable) | ||
Hydraulic piston size | Max.Diameter | 40-800 mm |
Thickness | 3-10 mm | |
Length | ≦12,000 mm | |
Machine Dimension | (L×W×H) 14500×1200×1200mm | |
Pipe Roller Max.Loading capacity | 1 Ton / 2 Ton / 5 Ton / 7Ton for options | |
Polishing Precision | Surface roughness(Ra) | <=0.25μm |
Production Efficiency | Polishing working speed | 6~12 m2/h |
Input total Power | 22 kw | |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 3800kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Suitable Polishing Materials | Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) | |
For option | Water cooling system is available during polishing. | |
Custom design service is available,contact for more steel surface automatic polishing machines & solutions.
