Steel vessel head cylinder cap automatic polishing machine

Steel vessel head cylinder cap interiror & exteriro surface automatic polishing machineTCM-D column and boom manipulator automatic polishing machine is for steel metal vessel head,tank cap,dish he...

Quantity: - +

Product Description

Steel vessel head cylinder cap interiror & exteriro surface automatic polishing machine

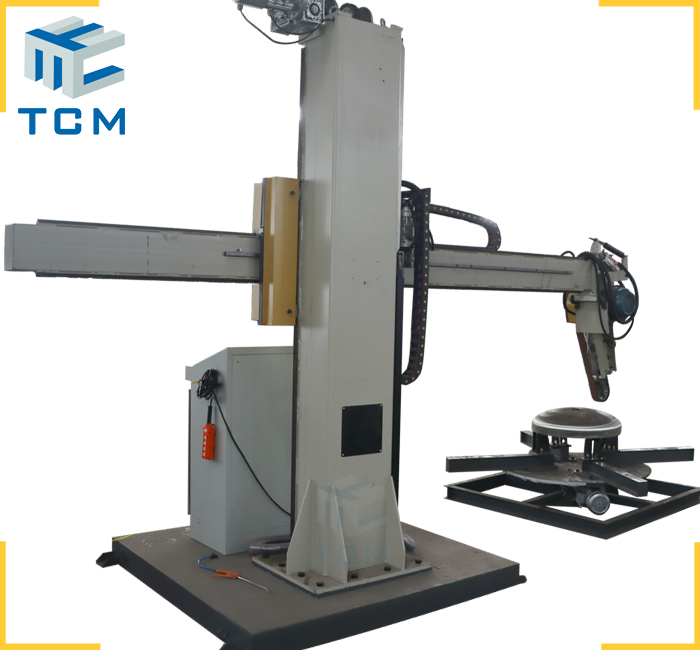

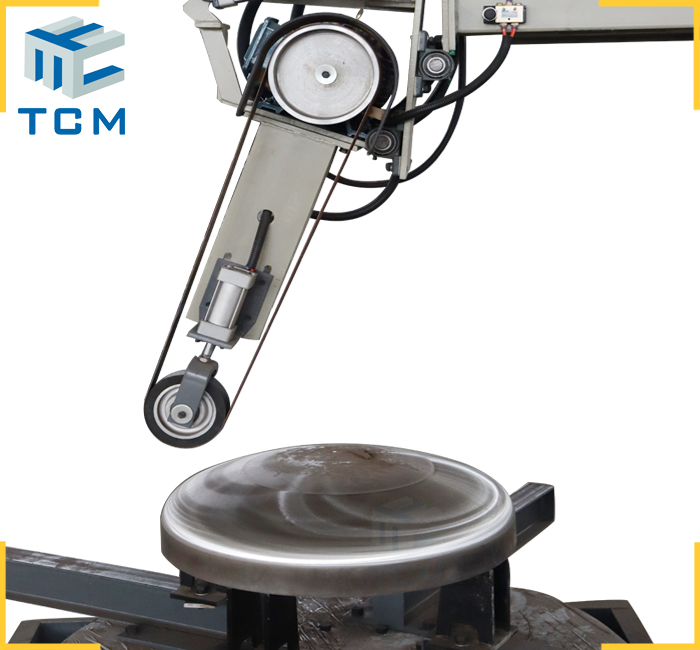

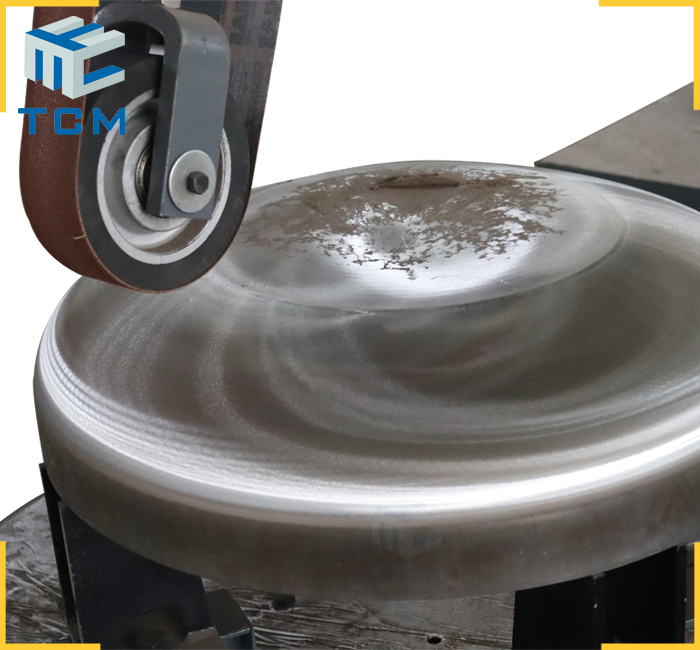

TCM-D column and boom manipulator automatic polishing machine is for steel metal vessel head,tank cap,dish head,spherical cap,dished heads,semi spherical heads interior & exterior surface grinding and buffing.

TCM-D steel polishing machine is suitable for all kinds of standard head polishing,conical head polishing,spherical head surface polishing,dish head polishing,special heads polishing,stainless steel oval head inside and outside surface grinding polishing, pressure vessel head polishing etc.it’s widely used in the fields of pharmaceutical industry,medical industry,food & Beverage industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.

Automatic vessel head polishing machine parameter

Normal configuration(customers’ requirement acceptable)

Available Polishing workpiece size

(Tank head/dish ends)

Inside & outside diameter

450~5000mm / 6000 mm

Turntable Max.Loading capacity

1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton.

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

/

6~12 m2/hour

Total Dimension

Machine Dimension

3500*1600*3080mm

Column Dimension

300x400x8 mm

Beam Dimension

150x200x6 mm

Input total Power

/

12 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Color

Grey/Green/Blue/Red/Yellow Custom design

Machine Weight

/

2250kg

Suitable Polishing Material

Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)
