Choose tank shell buffing machine in China and learn about the latest FOB quotation of pressure vessel polish machine on tcmgrinding.com
Stainless steel tank shell tank body vessel surface automatic polishing grinding buffing machine.

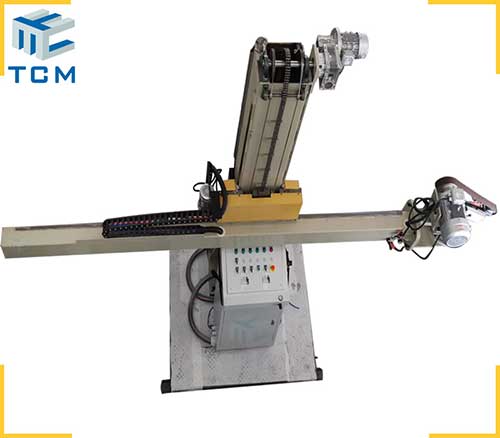

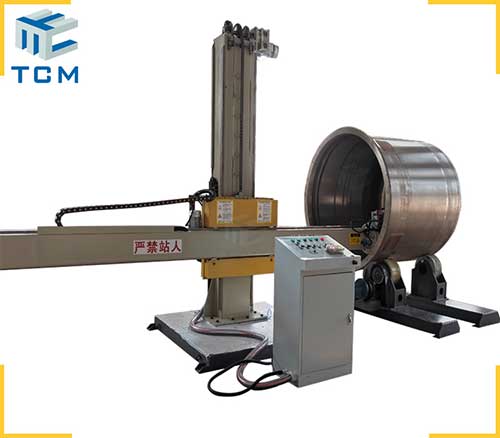

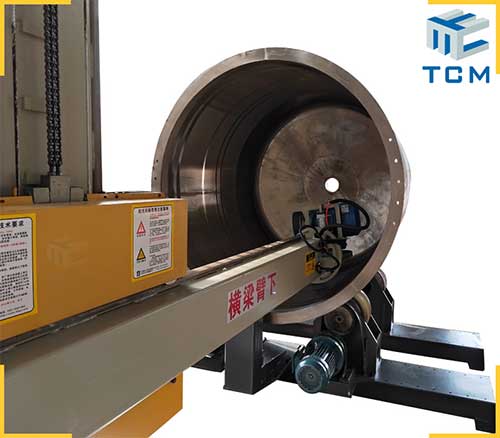

Trancar Industries TCM-T column and boom manipulator stainless steel tank automatic polishing machine,This model is suitable for not only all kinds of stainless steel tanks ,industrial tanks internal and external polishing grinding and buffing,but surface of the cylinder inside and outside,pressure vessel,industrial container and the circumferential welded seams polishing.This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.
It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.
TCM-T Steel tank automatic polishing machine parameter:
Normal configuration(customer design acceptable) | ||
Steel tank size | Outside diameter | 400~5000mm / 7000 mm |
Inside diameter | 400~5000mm / 7000 mm | |
Length | <=5000mm / 8000 mm | |
Tank Roller Max.Loading capacity | 1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T. | |
Polishing Precision | Surface roughness(Ra) | <=0.25μm |
Production Efficiency | Polishing working speed | 6~12 m2/h |
Total Dimension | Machine Dimension | 3500*1600*3080mm |
Column Dimension | 300x400x8 mm | |
Beam Dimension | 150x200x6 mm | |
Input total Power | / | 12 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 2250kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Suitable Polishing Material | Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) | |
