Steel Round Solid Bar Surface Automatic Grinding Machine

Searching supply information of excellent Grinding Machine, online negotiating the wholesale and latest price of Grinding Machineplease feel free to buy!

Quantity: - +

Product Description

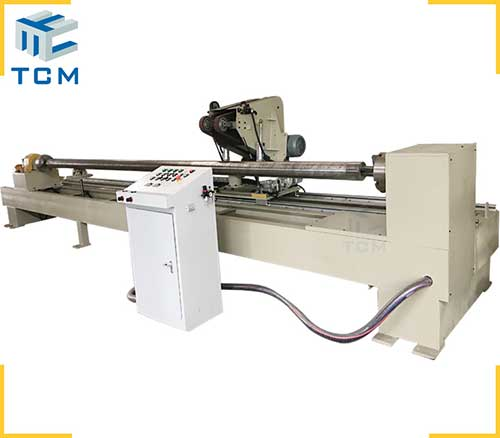

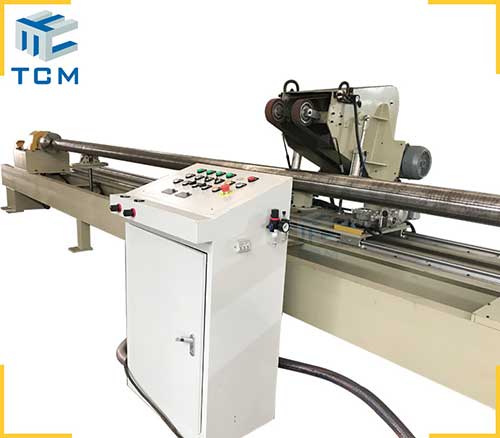

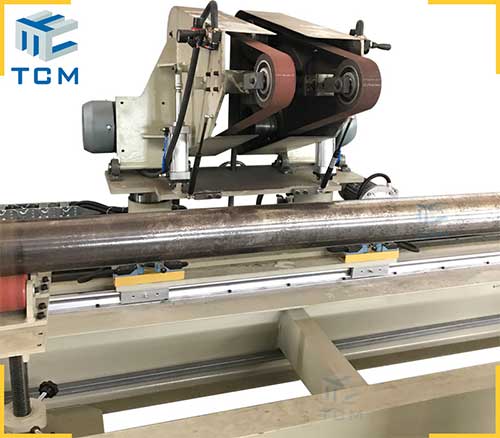

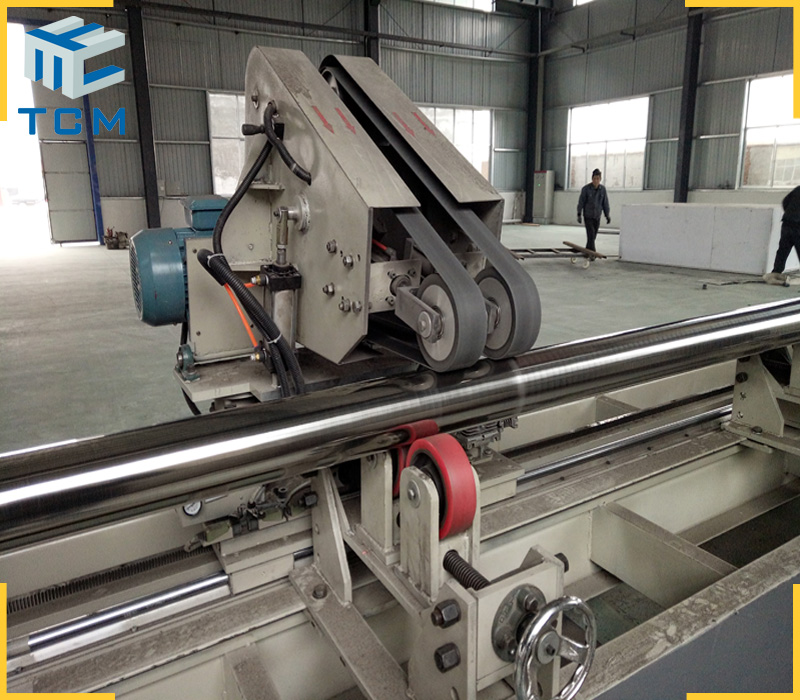

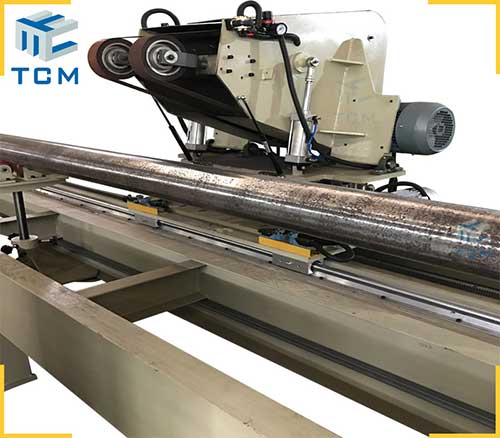

Steel round solid bar surface automatic grinding machine

Trancar Industries Model TCM-WP automatic grinding machine is design for stainless steel metal tube product’s surface grinding and buffing,such as it could polish steel tube pipe,Round Solid bar,hydraulic cylinder exterior surface in automatic way.TCM-WP pipe polishing machine equip with double variable frequency grinding motors both of them power is 7.5 KW.Both grinding wheels and abrasive sanding belts are available for this type tube pipe polishing machine.It’s widely used in the fields of pharmaceutical industry,medical industry,food industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.This machine besides could polish solid bar surface,also could grind steel tube pipe tube outer surface,custom design service is available.#solidbargrindingmachine #automatic steel pipe polishing machine.

Steel round solid bar surface automatic grinding machine parameter:

Normal configuration(customer design acceptable)

Steel metal Pipe size


40-800 mm


3-10 mm


≦12,000 mm

Machine Dimension

(L×W×H)  14500×1200×1200mm

Pipe Roller Max.Loading capacity

1 Ton / 2 Ton / 5 Ton / 7Ton for options

Polishing Precision

Surface roughness(Ra)


Production Efficiency

Polishing working speed

6~12 m2/h

Input total Power

22 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight




Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Materials

Abrasive sanding belts,grinding wheels.

(flap/cloth/ emery/Nylon wheel etc)

For option

Water cooling system is available during polishing.
