Steel Flat plate sheet automatic polishing machine

For China Flat Sheet Polishing Machine, we are the best Polishing Machine suppliers, and provide various kinds of Plate Automatic Polishing Machine products with the lowest price.

Quantity: - +

Product Description

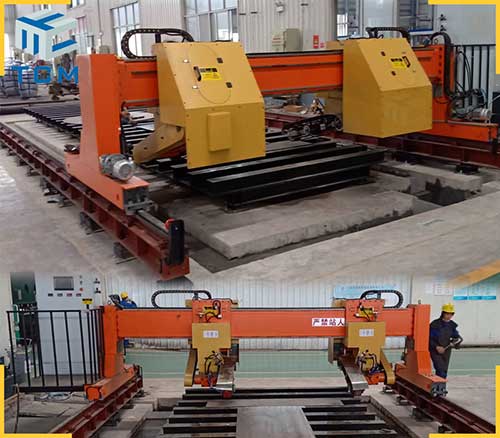

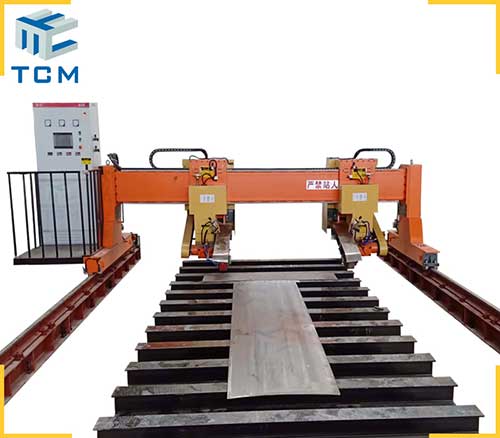

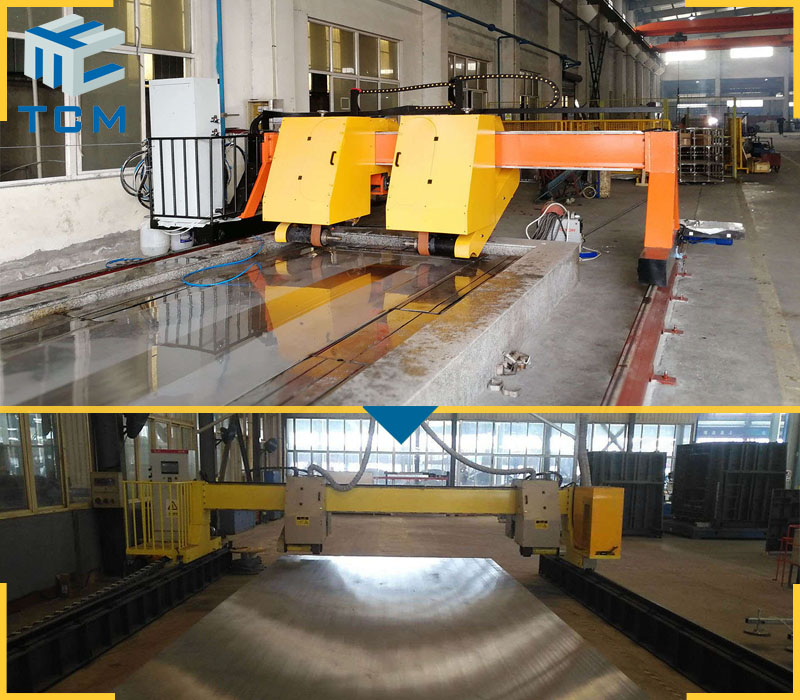

Trancar Industries TCM-PM polishing machine is a type of stainless steel surface finishing machine,it could do dust removing,welded joint’s surface grinding and mirror surface buffing for steel metal flat plate sheets.

It’s mainly used to polish & grind various materials of large plate sheets, such as the polishing of composite sheets and carbon steel plate before the composite grinding & surface finishing after sheet compounding.It’s especially suitable for the polishing,grinding and drawing of stainless steel plate.Due to the movement of the grinding head and the grinding method of the flat plate sheet,the length of the sheet is less than 10 meters,and the machine guide rail can be revised accordingly.Flat sheet automatic polishing machine are widely used in the field of Food processing,catering,brewing and chemical.

TCM-PM Steel Flat plate sheet automatic polishing machine parameter:

Normal configuration(customer design acceptable)

Steel metal sheet size

Max.Available Width

800 / 1500 / 2000  mm


≧1.5 mm


≦10,000 mm

Machine Dimension

(L×W×H)   6500×3000×1200 mm

Polishing Precision

Surface roughness(Ra)


Production Efficiency

Polishing working speed

6~12 m2/h

Input total Power

8Kw/12Kw /20kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight




Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Materials

Abrasive sanding belts,grinding wheels.

(flap/cloth/ emery/Nylon wheel etc)
