Stainless Steel tank bottom polishing machine automatic steel surface grinding machine

Hefei Trancar Industries Co.,Ltd provide automatic polishing machine for steel tank bottom inner and exterior surface grinding buffing.steel polishing machine customized service is available,All the machines with CE approved.

Quantity: - +

Product Description

Hefei Trancar Industries stainless Steel tank bottom polishing machine

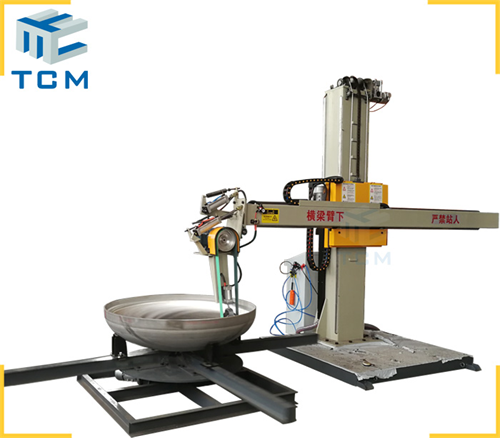

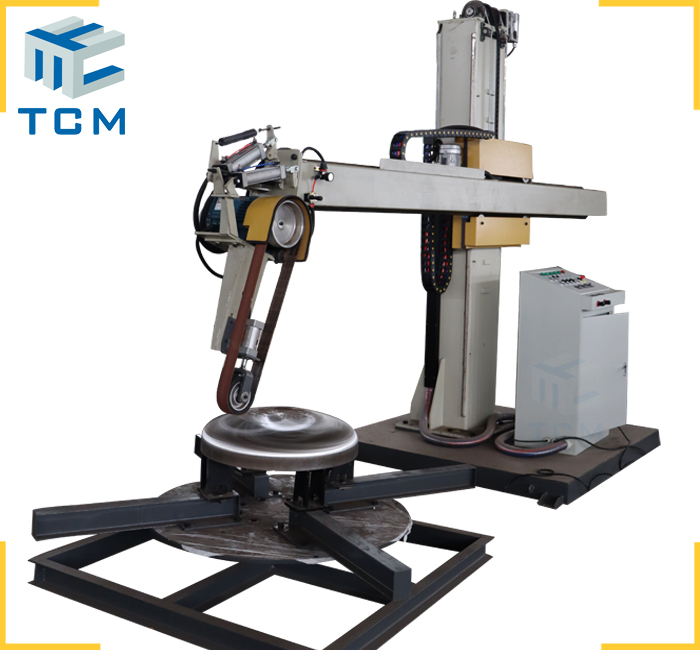

Trancar Industries TCM steel tank bottom automatic polishing machine is made up of column and boom manipulator,It could polish steel tank bottom interior and exterior surface in mechanical way.For steel tank bottom polishing machine video please click.



TCM-D series steel automatic polishing machine is suitable for all kinds of standard steel metal head’s surface polishing,such as cylinder heads,vessel heads,dish head,spherical cap,dished end,conical head,spherical head,dish head,special heads surface polishing,stainless steel oval head inside and outside surface grinding polishing, pressure vessel head polishing etc.

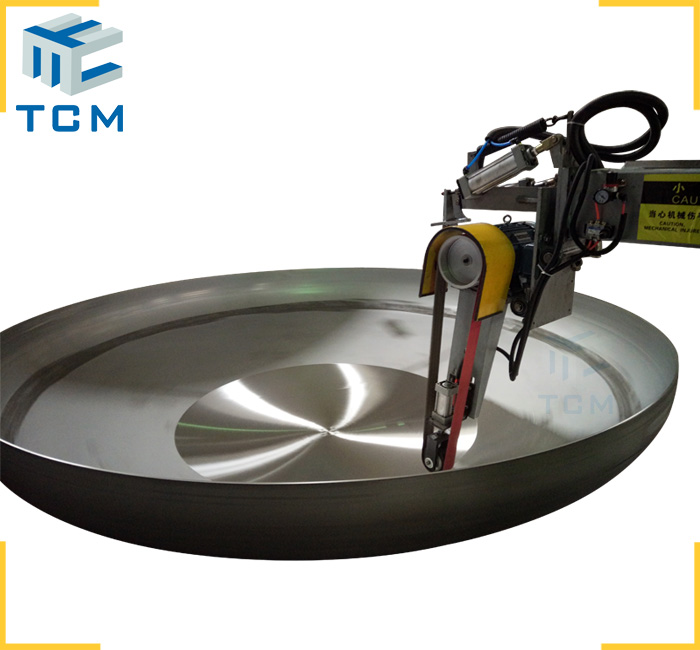

The machine makes surface friction through the contact of polishing wheel and the work piece then to polish the head surface inside and outside,and grind weld surface.And improve the surface smoothness of the work piece.



According to head inside surface curve.it can be divided into three sections curve:subsection,time-sharing and different speed.The running time of the beam can be adjusted directly in the control cabinet with three time-controllers.

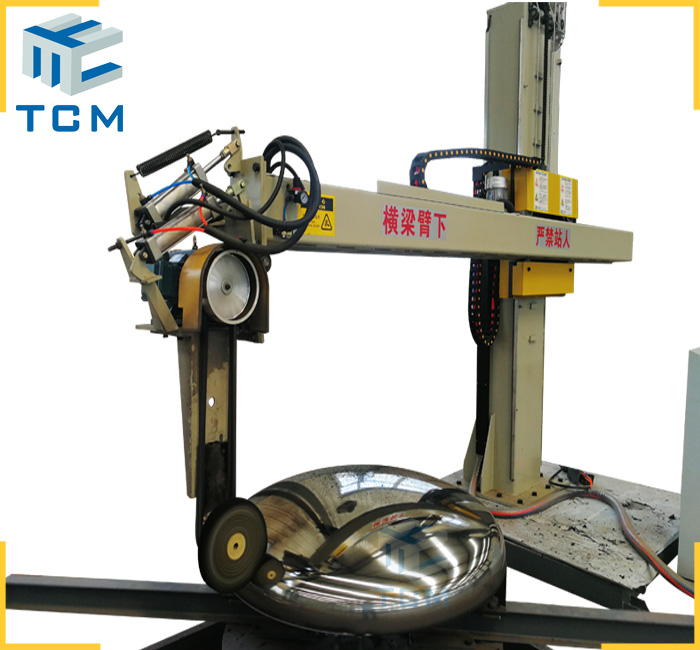

The running speed of the up and upon of boom is set in the corresponding frequency speed controller.The running track of grinding head and head surface consistent when the machine is polishing.According to the grinding head floating technology.The grinding head close to the work piece's surface to grind uniformly when the machine is doing polish working.



Beside steel tank cover surface grinding machines,Trancar Industries also produce automatic polishing machine for steel tank shell,cylinder body surface treatment.Trancar Industries polishing equipment are widely used in the fields of pharmaceutical industry,medical industry,food & Beverage industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.

Automatic tank bottom automatic polishing machine parameter:

Normal configuration(customers' requirement acceptable)

Available Polishing workpiece size

(Tank head/dish ends)

Inside & outside diameter

450~5000mm / 6000 mm

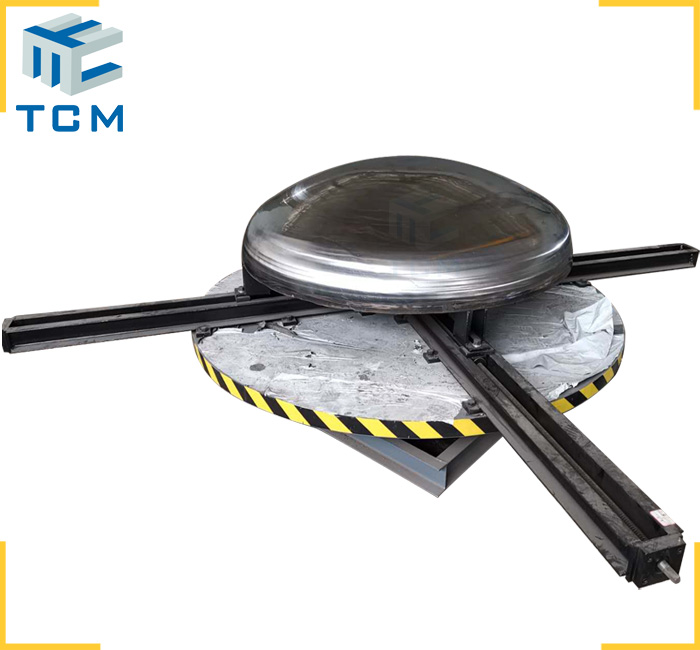

Turntable Max.Loading capacity

1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton.


Polishing Precision

Surface roughness(Ra)

<=0.25μm


Production Efficiency

/

6~12 m2/hour


Total Dimension

Machine Dimension

3500*1600*3080mm


Column Dimension

300x400x8 mm


Beam Dimension

150x200x6 mm


Input total Power

/

12 kw


Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization


Color

Grey/Green/Blue/Red/Yellow Custom design


Machine Weight

/

2250kg


Suitable Polishing Material

Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)


 Stainless steel tank bottom polishing machine  (6).jpg
