Welcome to Hefei Trancar Industries Co.,Ltd.

Hydraulic piston automatic polishing machine from Trancar Industries

Mechanical polishing solutions for hydraulic piston exterior surface grinding polishing buffing.

Quantity: - +

Product Description

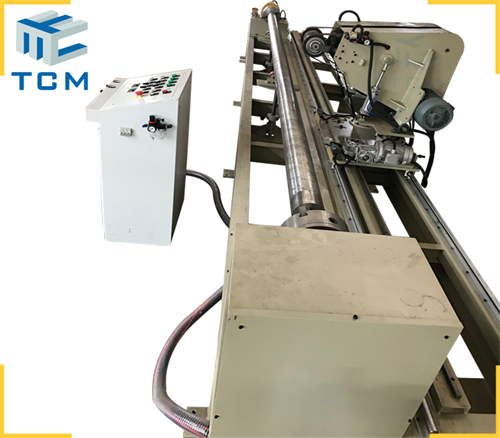

Hydraulic piston automatic polishing machine from Trancar Industries



      Hefei Trancar Industries Model TCM-WP automatic grinding machine is design for hydraulic piston surface polishing,beside workable for hydraulic piston,it’s also could for cylindrical steel products surface treatments,such as it could polish steel tube pipe,Round Solid bar,hydraulic cylinder exterior surface in automatic way.Trancar hydraulic piston polishing machine equip with double variable frequency grinding motors both of them power is 7.5 KW.Both grinding wheels and abrasive sanding belts are available for this type tube pipe polishing machine.It's widely used in the fields of petrochemical industry/Organic fuel,Organic fuel production,Pharmaceutical/CIP Plant,Chemical & Cosmetic industry etc.#automaticpolishingmachine #hydraulicpistonpolishingmachine.

hydraulic piston automatic polishing machine  (3).jpg  hydraulic piston automatic polishing machine  (6).jpg

Hydraulic piston automatic polishing machine parameter:

Normal configuration(customer design acceptable)

Hydraulic piston size

Max.Diameter

40-800 mm

Thickness

3-10 mm

Length

≦12,000 mm

Machine Dimension

(L×W×H)  14500×1200×1200mm

Pipe Roller Max.Loading capacity

1 Ton / 2 Ton / 5 Ton / 7Ton for options

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

Polishing working speed

6~12 m2/h

Input total Power

22 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

3800kg

Color

Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Materials

Abrasive sanding belts,grinding wheels.

(flap/cloth/ emery/Nylon wheel etc)

For option

Water cooling system is available during polishing.

Packaging and delivery:

1,Plywood case+PE Film+ Carton protection.
2,Based on your order requirements.

polishing machine package1.jpg
