High speed abrasive belts polishing machine steel welding wire grinding machine
#wirepolishingmachine welding wire grinding machine #Jotunpolishingmachine #trancarpolishingmachine #weldingwiredrawing
Trancar Industries TCM-WR automatic polishing machine for steel wire surface grinding polishing.Custom design service is available.
Welding wire grinding machine:

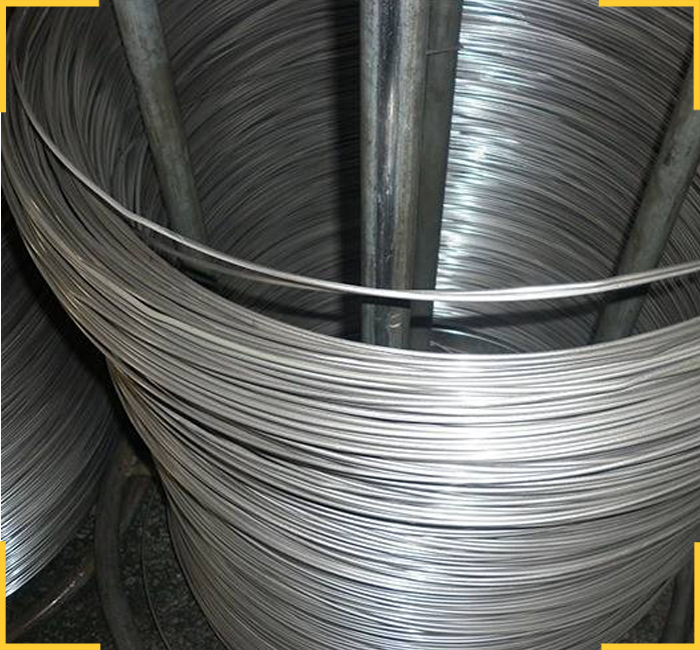

TCM-WR abrasive belts welding wire grinding polishing machine use a mechanical method to polish steel welding wire rod surface instead of traditional way acid pickling. After the base material is polished,the wire diameter is slightly reduced, the surface is smooth,no scratches,pits and other defects,no obvious wear marks, and the surface roughness is generally in the Between Ra 3.2-6.3,the wire rod surface is bright rather than matt.

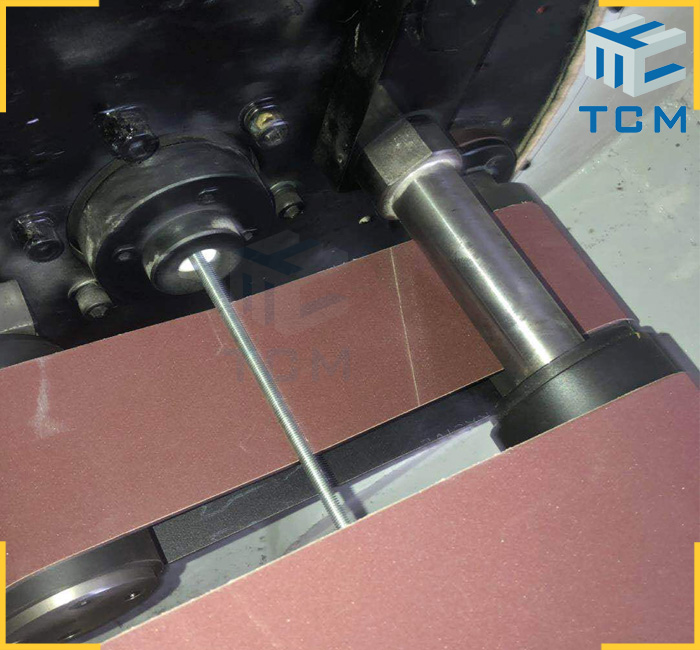

This belt polishing machine cleans the slight pits,and scratches on the surface of the welding wire.Each set of active rollers and a tension roller supported by the turntable drives the high-speed rotating abrasive belt.For polishing (roller made of aluminum alloy),the rotating speed of the turntable matches the speed of the take-up machine.#weldingwiregrindingmachine #weldingwiredrawingmachine #abrasivebeltpolishingmachine #wirerodgrindingequipments
Steel welding wire polishing machine Introduction:

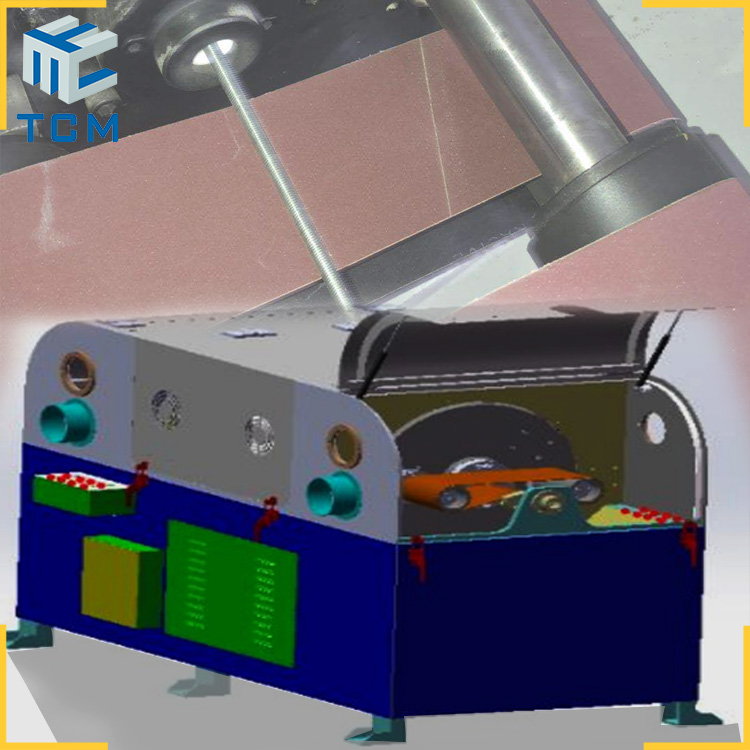

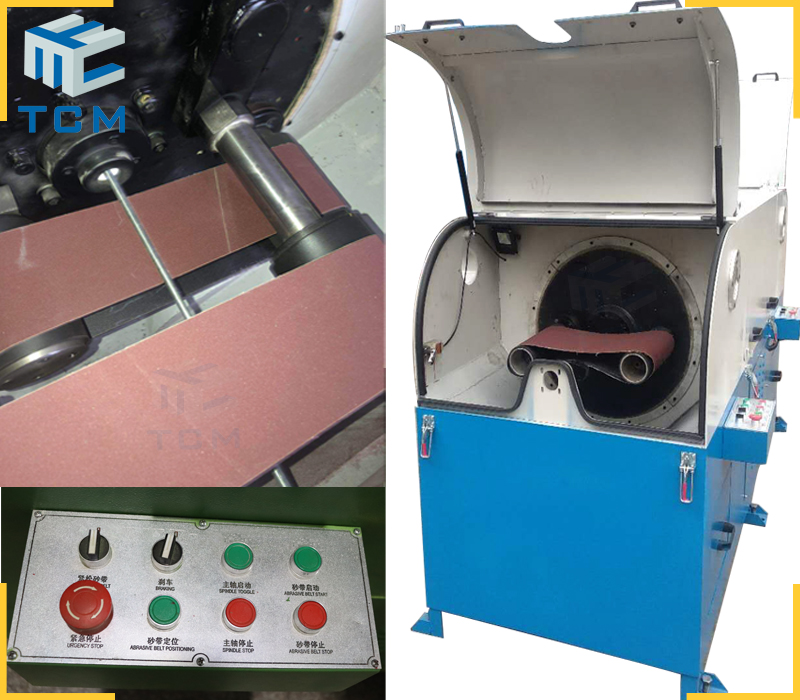

Machine frame uses the structural part, long square box structure.This equipment is composed of spindle,rotary disc, power drive part, straightener, protective cover, and vacuum cleaner. The working principle:Belt is mounted on the turntable with revolution and rotation,belt installed in the right place always close to the wire rod surface, by adjusting the eccentric shaft to complete belt tensioning-releasing,loading/unloading the belt and threading the wire rod,the adjustment of the eccentric shaft lever spring can change the tension of the sand belt.The main drive uses a 11kw frequency conversion motor or 2 sets 7.5kw motor to run through a triangular belt drive spindle.The turntable is connected with the main shaft with a bolt,which is convenient for maintenance and disassembly. #weldingwirepolishingmachine #steelwirepolishingmachine
Steel welding Wire surface polishing grinding machine machine parameter:
Normal configuration(customer design acceptable)
Wire Rod Diameter
1-5mm / 5-8mm / 8-16mm / 16-25mm
Abrasive Belts Size
1600*500 mm / 1350*300mm / 1250*300mm etc
Polishing working speed
Input total Power
380V 415V / 50Hz 60HZ / 3p or Customization
Grey/Green/Blue/Red/Yellow Custom design
Dust Collection system is available during polishing.

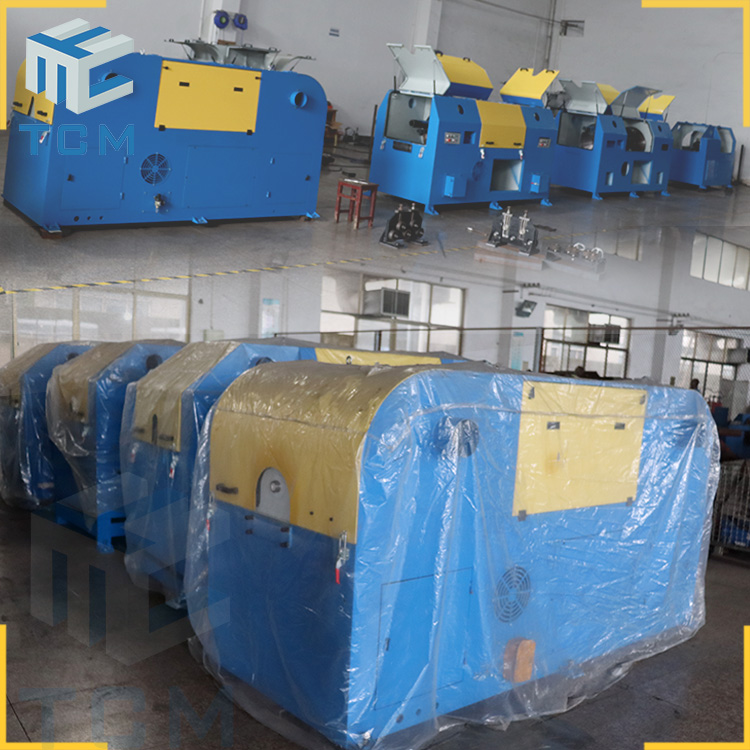

Steel welding wire grinding machine packaged & delivery:
Custom design plywood pacakge will be used for goods delivery
