Dished Head surface grinding equipment from Trancar Industries

Dished head interiror exterior surface grinding equipment,automatic steel surface grinding machine from Trancar Industries Co.,Ltd.

Quantity: - +

Product Description

Hefei Trancar Industries steel dished head interior and exterior surface grinding equipment automatic surface grinding machines

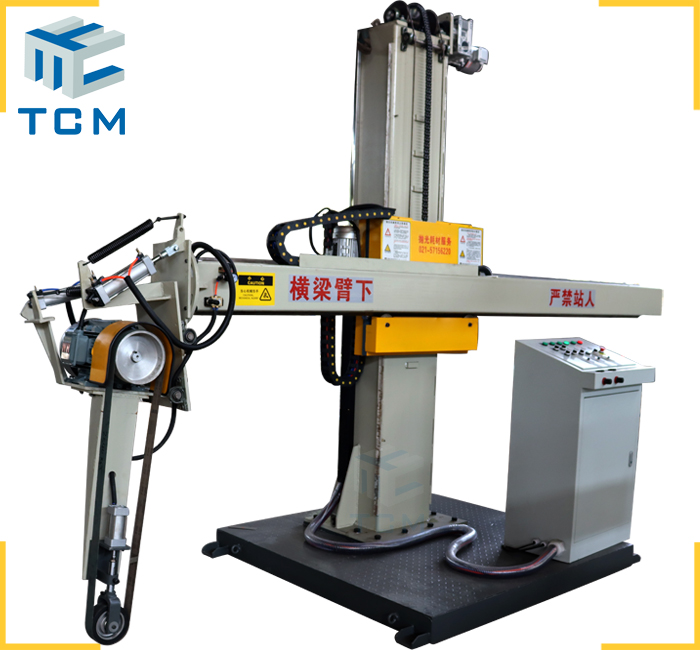

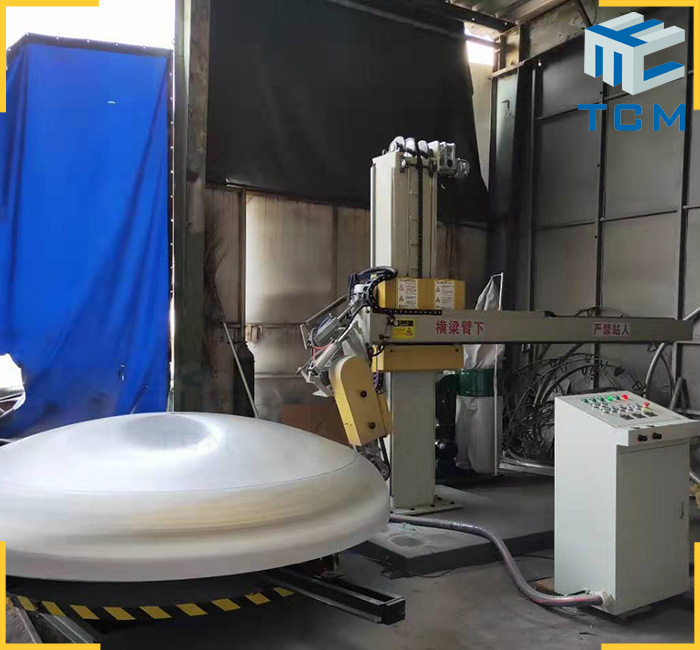

Trancar Industries TCM steel dish head grinding equipment is made up of column and boom manipulator,It could grind steel dished head interior and exterior surface in mechanical way.For dished head grinding equipment working video please click.


TCM-D series steel automatic grinding equipment is suitable for all kinds of standard steel metal head's surface grinding,such as cylinder heads,vessel heads,tank caps,spherical cap,dished end,conical head,spherical head,tank covers,special heads surface polishing,stainless steel oval head inside and outside surface grinding polishing, pressure vessel head polishing etc.

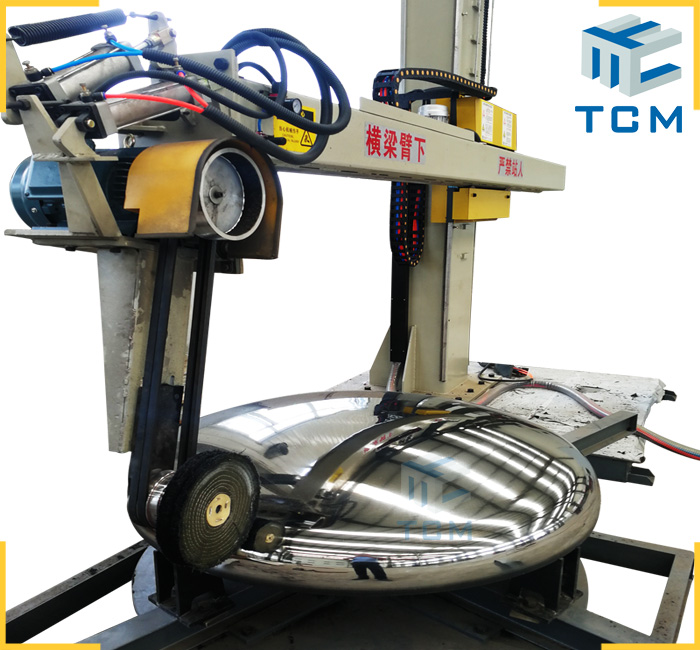

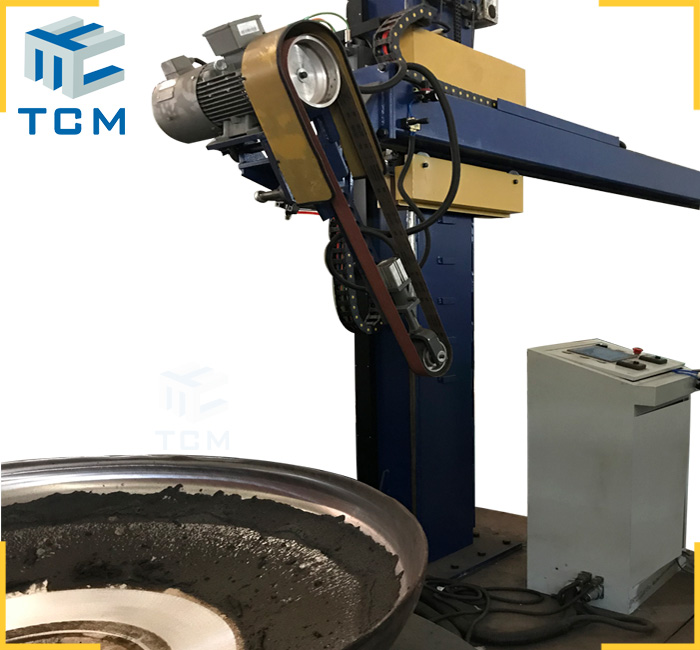

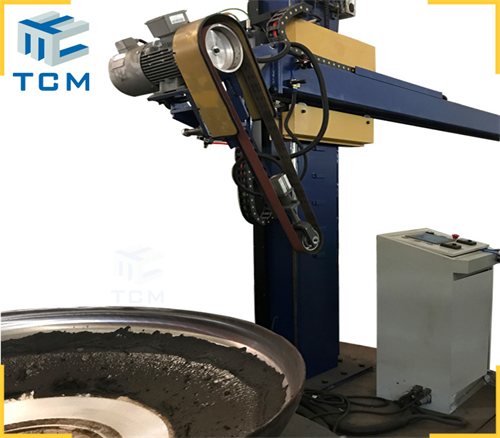

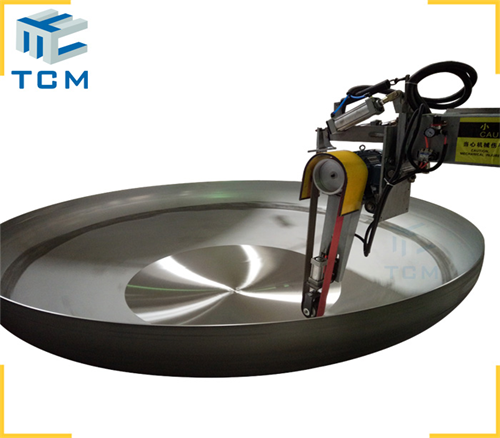

This machine makes surface friction through the contact of polishing wheel and the work piece then to polish the head surface inside and outside,and grind weld surface.And improve the surface smoothness of the work piece.

According to head inside surface curve.it can be divided into three sections curve:subsection,time-sharing and different speed.The running time of the beam can be adjusted directly in the control cabinet with three time-controllers.

The running speed of the up and upon of boom is set in the corresponding frequency speed controller.The running track of grinding head and head surface consistent when the machine is polishing.According to the grinding head floating technology.The grinding head close to the work piece's surface to grind uniformly when the machine is doing polish working.


    Beside steel dished head grinding equipment,Trancar Industries also produce automatic polishing machine for steel tank shell,cylinder body surface grinding.Trancar Industries polishing equipment are widely used in the fields of pharmaceutical industry,medical industry,food & Beverage industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.

Steel dished head grinding equipment parameter:

Normal configuration(customers' requirement acceptable)

Available Polishing workpiece size

(Tank head/dish ends)

Inside & outside diameter

450~5000mm / 6000 mm

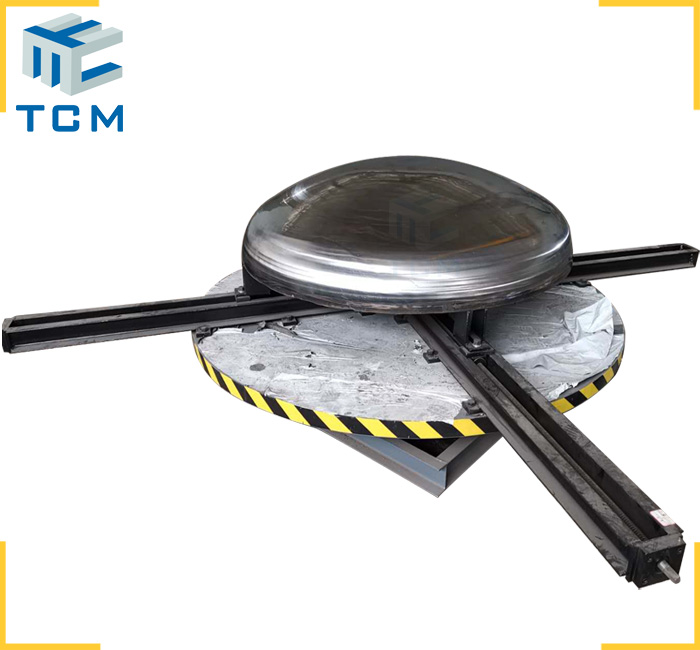

Turntable Max.Loading capacity

1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton.

Polishing Precision

Surface roughness(Ra)


Production Efficiency


6~12 m2/hour

Total Dimension

Machine Dimension


Column Dimension

300x400x8 mm

Beam Dimension

150x200x6 mm

Input total Power


12 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization


Grey/Green/Blue/Red/Yellow Custom design

Machine Weight



Suitable Polishing Material

Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)

Dished Head grinding equipment  (2).jpg  Dished Head grinding equipment  (1).jpg
