We own advanced CNC tank polishing machine to make sure products quality, and we are the best CNC tank polishing machine company in China.

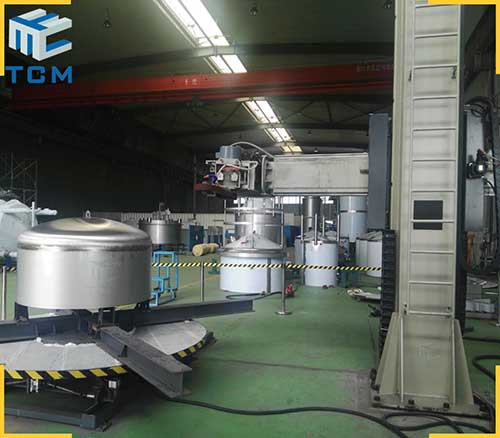

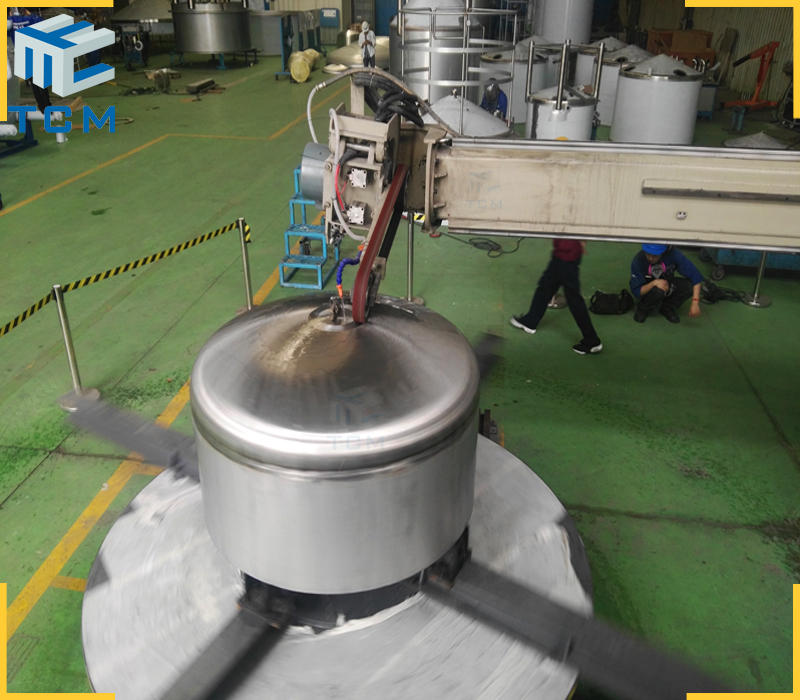

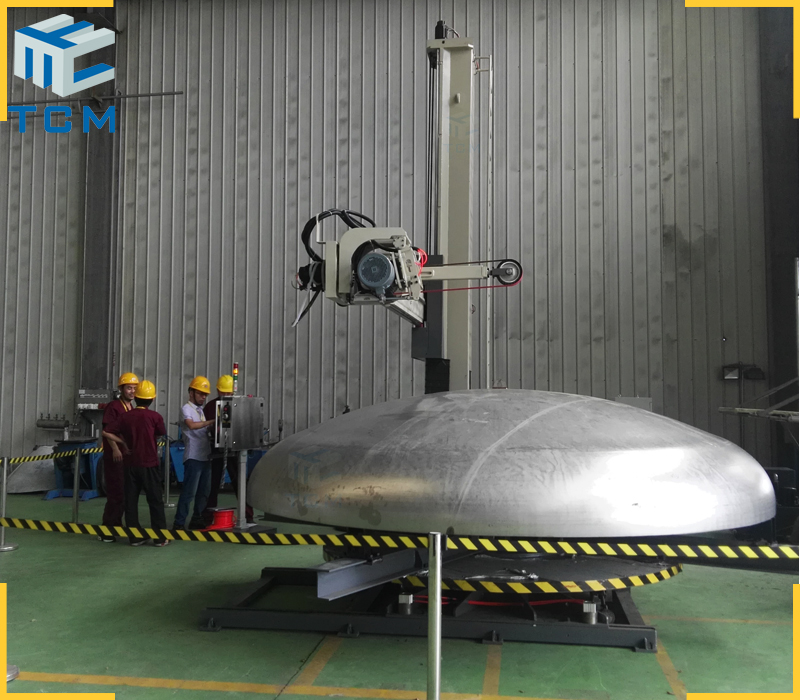

TCM-CNC column and boom manipulator polishing machine is 2 in 1 dual use multifunction full automatic polishing machine for steel metal tank body / tank shell,cylinders,heads,cones and dish head interior & exterior surface grinding buffing.This model is mainly for both vertical tank shell and dished head tank cap surface’s polishing grinding and buffing,equip with water cooling circulation system which could make reduce 95% dust pollution and keep stainless steel products with good performance after polishing.

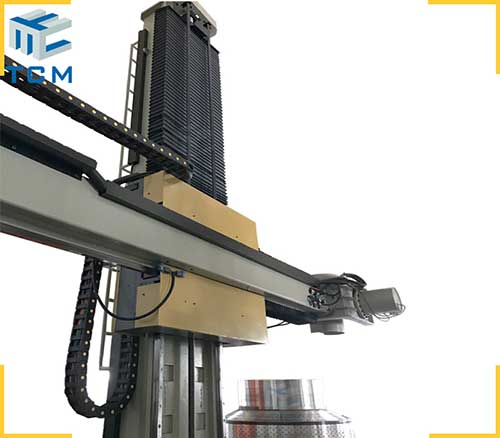

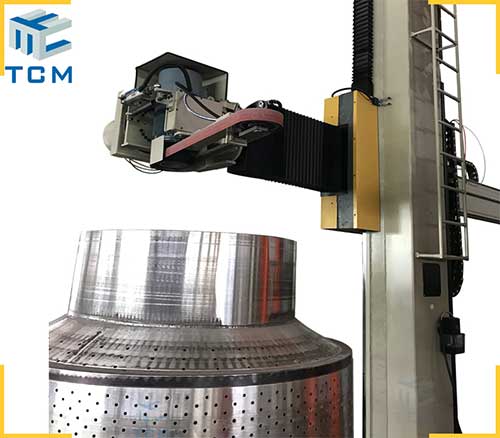

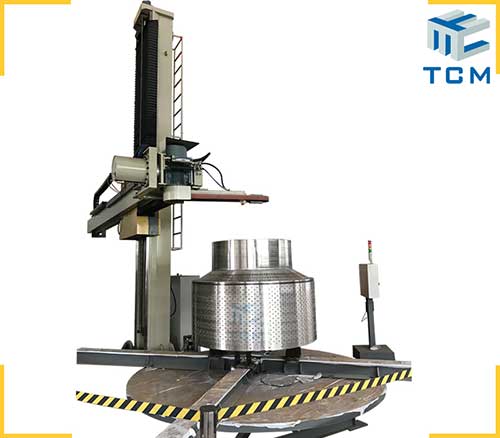

TCM-CNC polishing machine is made up of metal beam,column,machine base(foot),control cabinet and turntable,also with Siemens CNC full automatic control system,More than 100 polishing programs could be set in our CNC polishing machine.Using impeller with different grinding mesh grit to meet the demand on polishing.At the same time,abrasive sanding belts are available for CNC polishing machine.It is widely applied to medical,chemical,environmental purification,food and beverage,as well as water filtration,etc.
TCM-CNC Stainless steel full automatic polishing machine parameter:
Normal configuration(customer design acceptable) | ||
Vertical tank size | Outside diameter | 500~4000mm |
Length | <=3000mm | |
Dish end/Tank Head Size | Inside & outer Diameter | 500~4000mm |
Dish ends’ depth/height | ≦800 mm | |
Turntable Max.loading capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. | |
Polishing Precision | Surface roughness(Ra) | <=0.25μm |
Production Efficiency | Polishing working speed | 6~12 m2/h |
Total Dimension | Machine Dimension | 5200*800*5800mm |
Column Dimension | 300x400x8 mm | |
Beam Dimension | 150x250x6 mm | |
Input total Power | / | 12 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 3200kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Suitable Polishing Materials | Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) | |
