For China Dish End CNC Grinding Machine, we are the best polishing machine suppliers, and provide various kinds of Parts of CNC Surface Grinding Machine products with the lowest price.

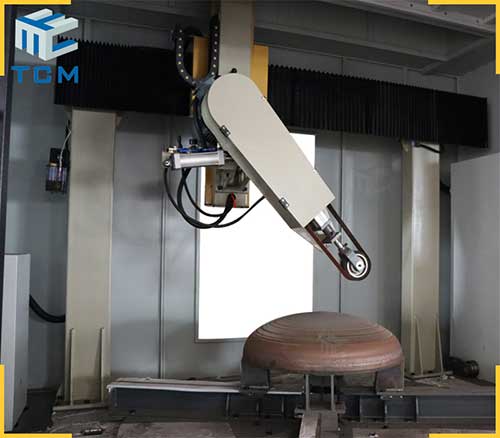

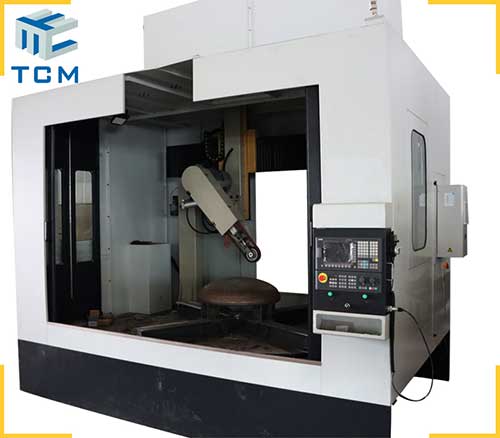

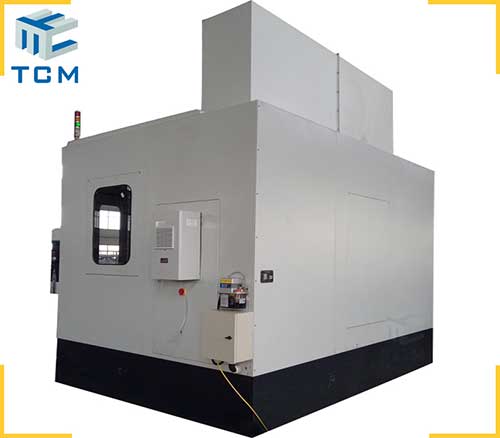

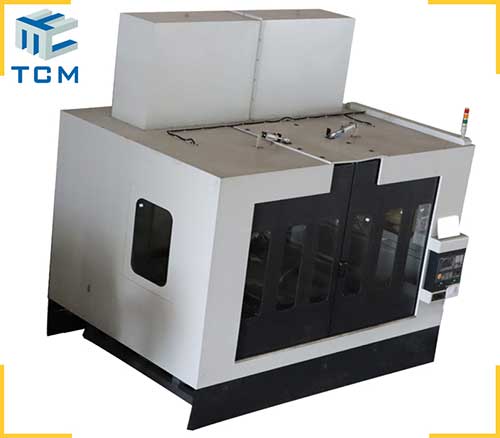

TCM-sk3 is new design CNC automatic polishing grinding machine based on model of TCM-SK1,It’s adopt double servo CNC system with two grinding heads,It’s environmentally friendly CNC dish end tank caps CNC full automatic polishing machine,which is specially designed for internal and external grinding of diameter 450-3000mm stainless steel heads,provides labor transformation and upgrade for enterprises,reduces labor costs,and improves production efficiency and product quality.Widely used in medicine,food,purification,water supply,chemicals,LNG new energy and other industries.
TCM-SK 3 could do follow Steel metal products’ surface treatment (polishing,
grinding,buffing).Such as dish heads,dish end,tank bottom,cylinder heads,
ellipsoidal headsemi spherical heads,spherical heads etc.
TCM-SK3 Steel dish end / tank caps CNC grinding machine parameter:
Normal configuration(customer design acceptable) | ||
Workpiece size (Dish ends/tank caps) | Outside diameter | 450~3000 mm |
Inside diameter | 450~3000 mm | |
Depth(Height) | <=750 mm | |
Turntable Max.loading capacity | 2 Ton / 3 Ton / 5 Ton | |
Polishing Precision | Surface roughness(Ra) | <=0.25μm |
Production Efficiency | Polishing working speed | 12~20 m2/h |
Total Dimension | Machine Dimension | 4300x3400x3950 mm |
Input total Power | / | 8 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 5800kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Suitable Polishing Materials | Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) | |
