Welded metal Vaccum bellows

Choose welded metal bellows manufacturers in China and learn about the latest FOB quotation of Polishing Machine on www.Tcmgrinding.com

Quantity: - +

Product Description

Stainless steel welded metal bellows offer best performance on flexible ratio and vacuum leak rate,they maintain their high strength capability and custom design with varying thicknesses.We could offers AM350,304L 316L steel welded bellows with CF,KF ISO metal flange or process custom design flanges accordingly.Steel welded vacuum bellows widely used in the fields of solar, semiconductor,photovoltaic,vacuum,electronic,nuclear,industry etc.

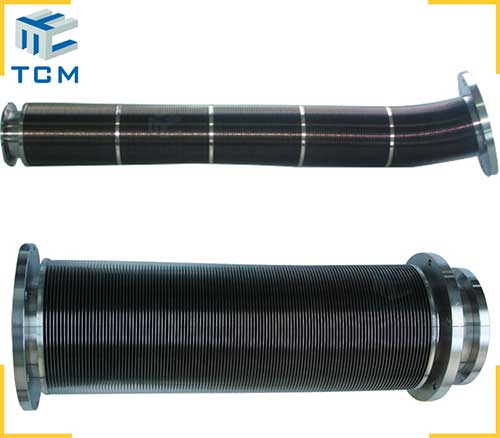

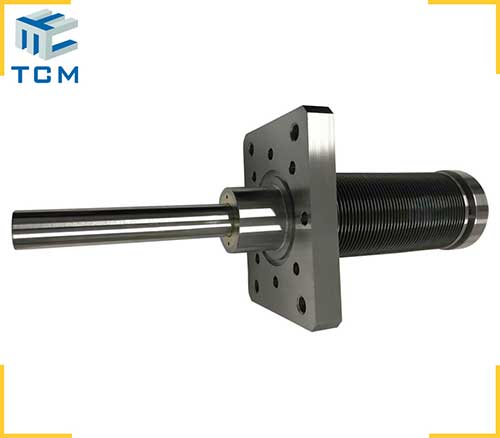

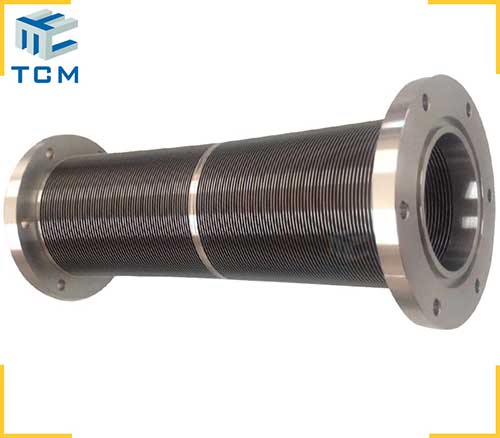

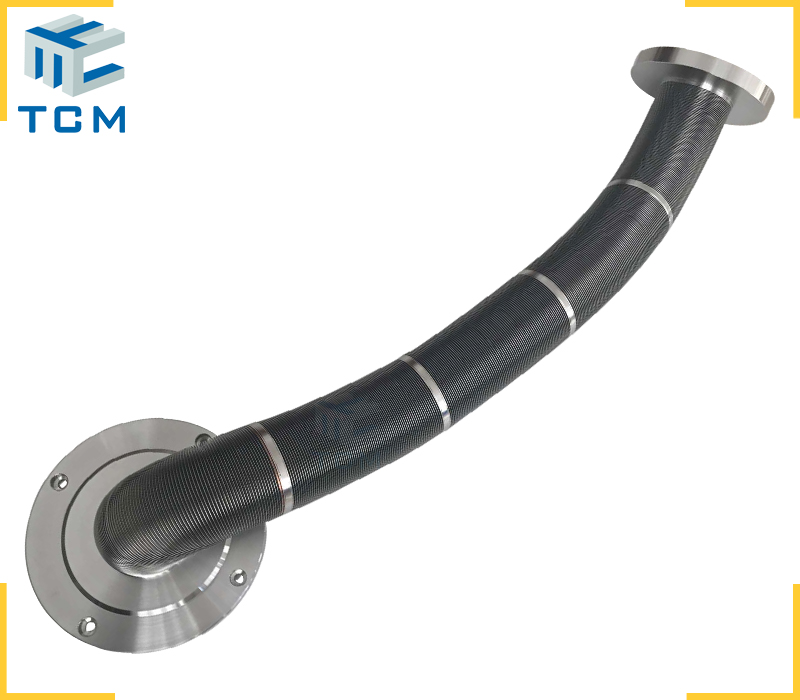

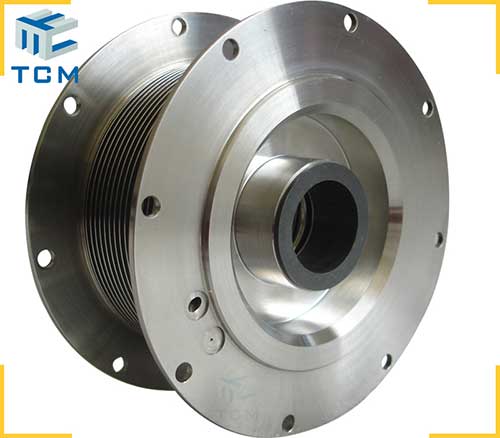

Stainless steel welded metal vacuum bellows

Normal configuration(customer design acceptable)

Steel Bellows Data

ID

8-200 mm

OD

17-235 mm

Thickness

0.05-0.10 / 0.15-0.20 mm

Materials

AM350,304L 316L etc

vacuum leakage rate

(Standard Leak Rate) 1*10-8Pa•L/S~1* 10-12Pa•L/S

Working Temperature

-196 ~ 800℃;

compression ratio

 80%;

Service (cycle) life:

10 ~ 1 million times

Length

Based on your demands

 Welded bellows  (6).jpg
