Steel dish head CNC automatic polishing machine

Searching supply information of excellent Dish Head cnc Polishing Machine, online negotiating the wholesale and latest price of polishing machine, please feel free to buy!

Quantity: - +

Product Description

TCM-sk1 is new design CNC automatic polishing machine,It’s the first environmentally friendly CNC dish head polishing machine,which is specially designed for internal and external grinding of diameter 350-1000mm stainless steel heads,provides labor transformation and upgrade for enterprises,reduces labor costs,and improves production efficiency and product quality.Widely used in medicine,food,purification,water supply,chemicals,LNG new energy and other industries.

TCM-Sk 1could do follow Steel metal products’ surface treatment (polishing,

grinding,buffing).Such as dish heads,dish end,tank bottom,cylinder head,

ellipsoidal headsemi spherical heads,spherical heads etc.



TCM-SK1 Steel dish head CNC automatic polishing machine parameter:

Normal configuration(customer design acceptable)

Workpiece size

(Dish Heads)

Outside diameter

350~1000 mm

Inside diameter

350~1000 mm

Height(Depth)

<=300 mm

Turntable Max.loading capacity

1 Ton

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

Polishing working speed

6~12 m2/h

Total Dimension

Machine Dimension

1800x1400x2300 mm

Input total Power

/

5 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

2000kg

Color

Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Materials

Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc)

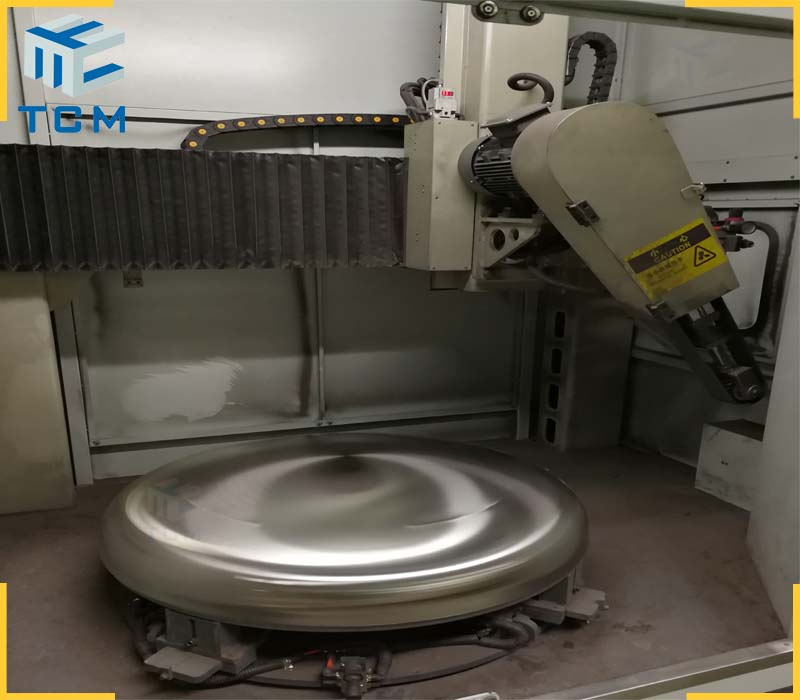

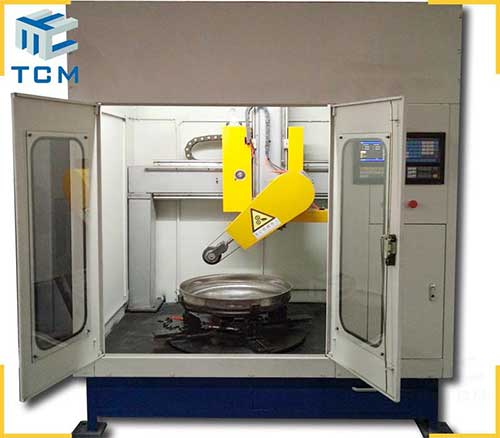

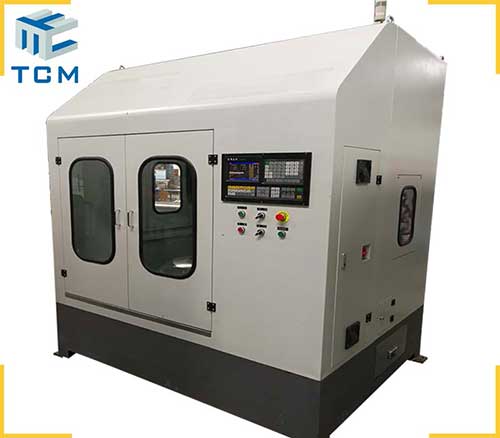

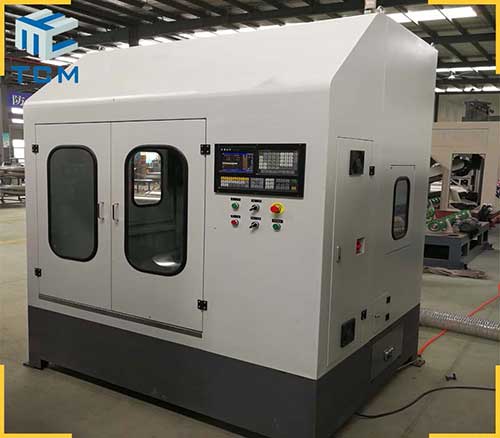

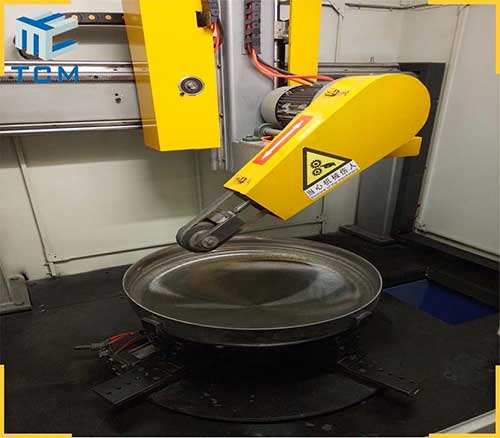

 TCM-SK1 Dish head polish machine.jpg
