Industry Pressure vessel head dished end surface automatic polishing machine

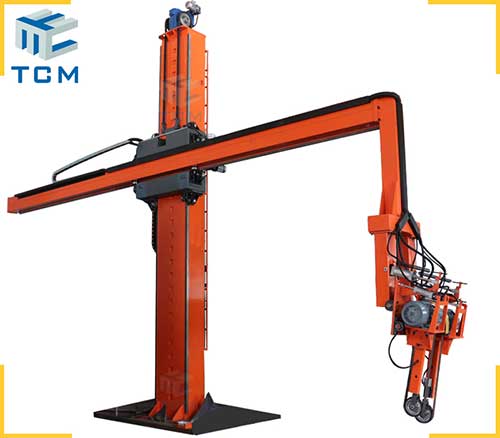

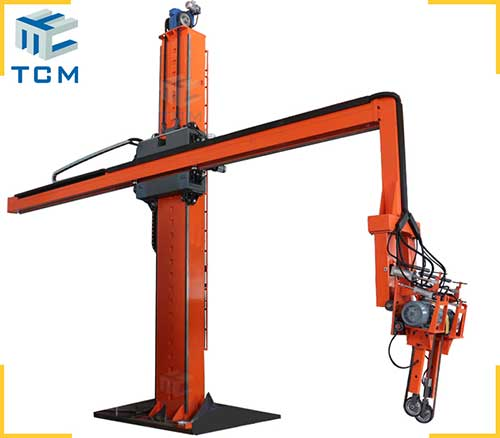

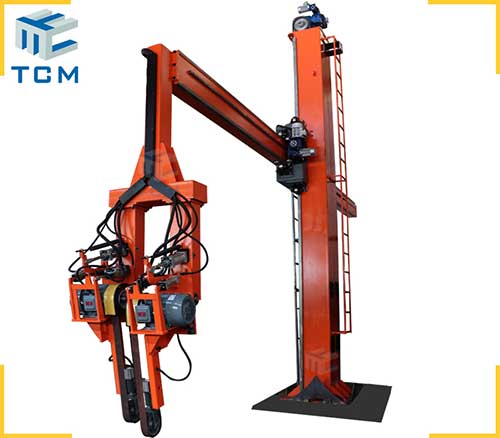

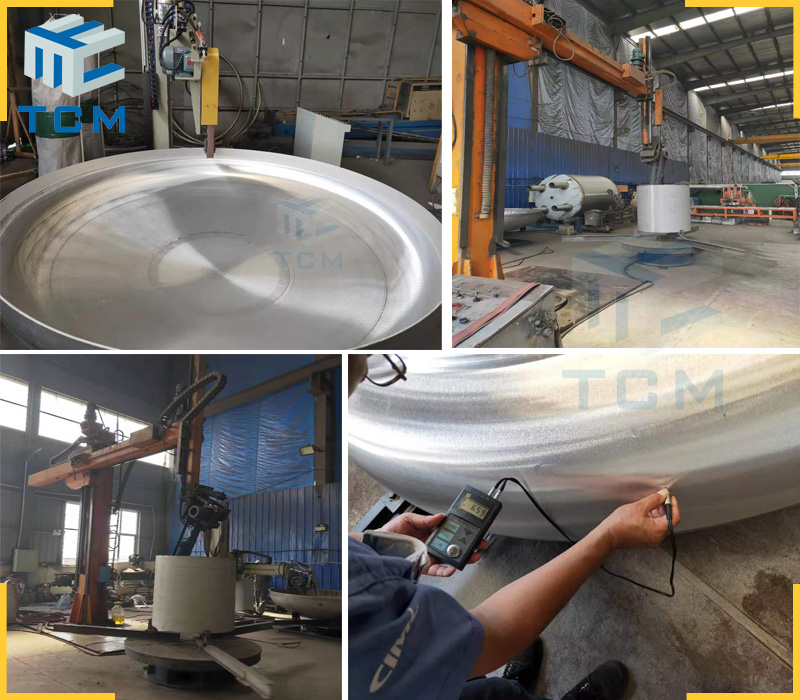

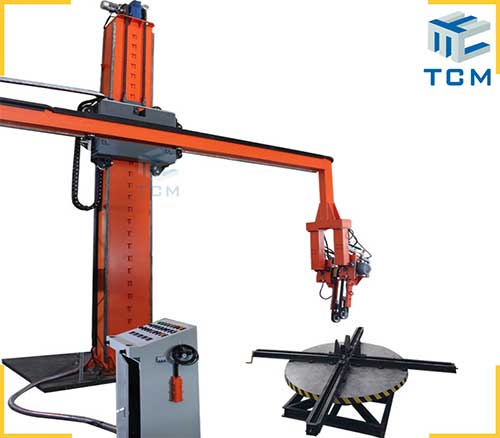

This column and boom manipulator automatic polishing machine is designed for larger diameter huge size industry pressure vessel head dished end surface grinding polishing & buffing with double grinding heads(motors).Besides polish steel pressure vessel head dished ends surface,It's also could polish Torispherical heads,Elliptical heads,Normal dished heads,Spherical dished surface and vertical tank shell inner outer surface.It is widely applied to pressure vessel industries,medical,chemical,environmental purification,food and beverage,as well as water filtration,etc.
SPECIFICATIONS FOR Pressure Vessel Heads Automatic Polishing Machine | |||
Polishing work piece size | Inside diameter | 500-6000 | mm |
Outside diameter | 500-6000 | mm | |
Length(Height) | <= 2500 | mm | |
working capacity | Dish head diameter | 500-6000 | mm |
Turntable Max.loading capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. | ||
Polishing precision | Surface roughness(Ra） | <= 0.25 | μm |
Machine Weight | / | 4100 | KG |
Machine Dimension (L x W x H) | / | 5000x800x5800 | mm |
Column Dimension | / | 350x450x10 | mm |
Motoried Arm | / | 200x250x8 | mm |
Input Total Power | / | 22 | KW |
Work Efficiency | / | 6~12 | m2/Hour |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | ||
Suitable Polishing Material | Abrasive sanding belts,grinding wheels.(flap/cloth/ emery/Nylon wheel etc) | ||
