lyophilizer hydraulic piston bellow vacuum bellows

Custom design high vacuum bellows for lyophilizer.

Quantity: - +

Product Description

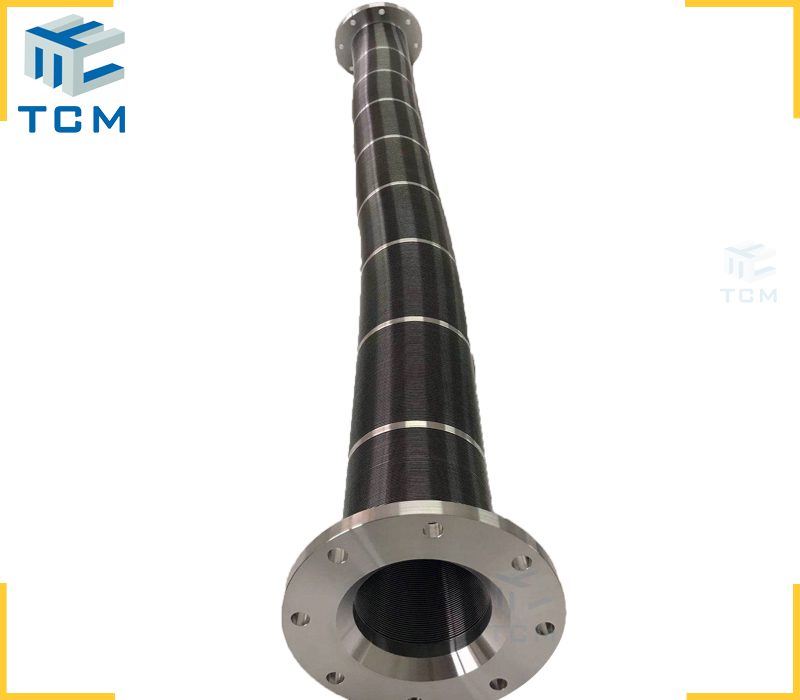

lyophilizer hydraulic piston bellow vacuum bellows

Stainless steel welded metal bellows offer best performance on flexible ratio and vacuum leak rate,they maintain their high strength capability and custom design with varying thicknesses.We could offers AM350,304L 316L steel welded bellows with CF,KF ISO metal flange or process custom design flanges accordingly.Steel welded vacuum bellows widely used in the fields of pharmaceutical equipment,solar, semiconductor,photovoltaic,vacuum,

electronic,nuclear,industry etc.


lyophilizer hydraulic piston bellow vacuum bellows

Normal configuration(customer design acceptable)

Steel Bellows Data

ID

8-200 mm

OD

17-235 mm

Thickness

0.05-0.10 / 0.15-0.20 mm

Materials

AM350,304L 316L etc

vacuum leakage rate

(Standard Leak Rate) 1*10-8Pa•L/S~1* 10-12Pa•L/S

Working Temperature

-196 ~ 800℃;

compression ratio

 80%;

Service (cycle) life:

10 ~ 1 million times

Length

Based on your demands

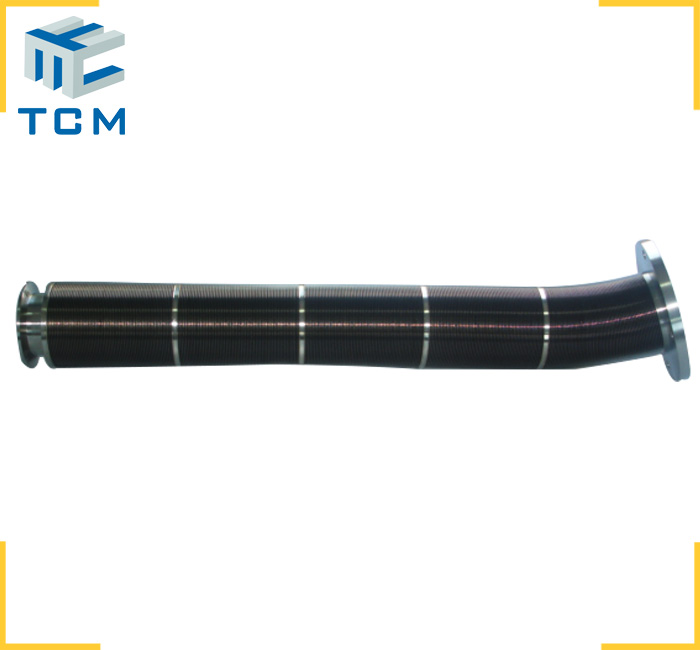

 lyophilizer hydraulic piston bellow vacuum bellows  (3).jpg
