Still searching for Dish Head Polishing Machine exporters? Our company always offer Tank cap Buffing Machine selling leads, just welcome and visit our website http://www.tcmgrinding.com.

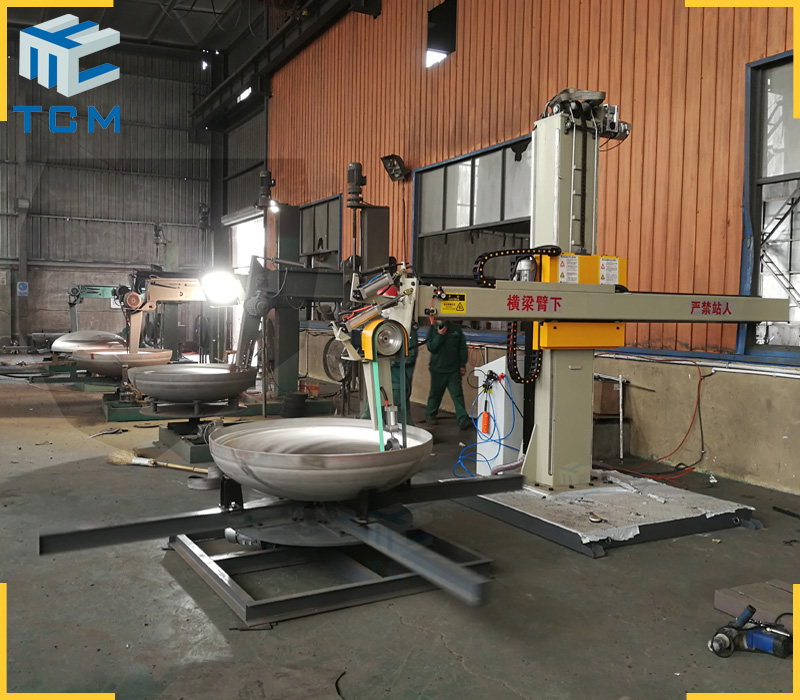

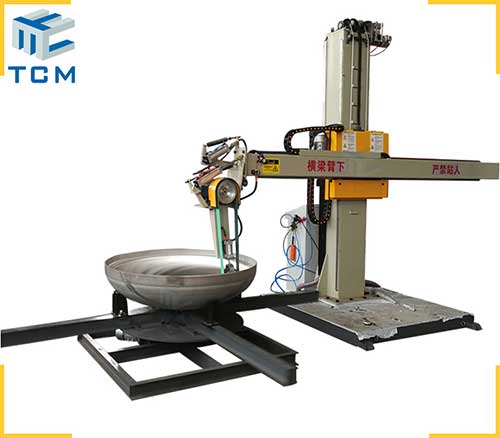

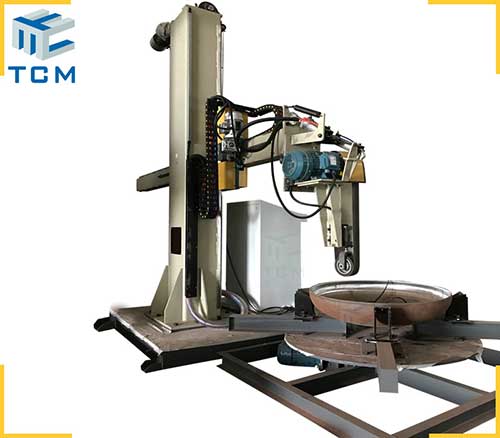

TCM-D column and boom manipulator automatic surface grinding machine is for steel metal tank end,dish head,tank cap / bottom / cone inner outer surface polishing and buffing.
This model is mainly used for the surface polishing stainless steel / metal /aluminum /copper dished end / tank head / cylinder head.Also could for vertical tank surface grinding.
TCM-D grinding machine is suitable for all kinds of standard head polishing,conical head polishing,spherical head surface polishing,dish head polishing,special heads polishing,stainless steel oval head inside and outside surface grinding polishing, pressure vessel head polishing etc.it’s widely used in the fields of pharmaceutical industry,medical industry,food & Beverage industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
TCM-D Automatic dished head polishing machine parameter:
Normal configuration(customers’ requirement acceptable) | ||
Available Polishing workpiece size (Tank head/dish ends) | Inside & outside diameter | 450~5000mm / 6000 mm |
Turntable Max.Loading capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. | |
Polishing Precision | Surface roughness(Ra) | <=0.25μm |
Production Efficiency | / | 6~12 m2/hour |
Total Dimension | Machine Dimension | 3500*1600*3080mm |
Column Dimension | 300x400x8 mm | |
Beam Dimension | 150x200x6 mm | |
Input total Power | / | 12 kw |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Machine Weight | / | 2250kg |
Suitable Polishing Material | Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) | |
